NEW QUESTION 1
An administrator is working to update the hosts and virtual machines in a vSphere 5.x deployment using Update Manager Baselines.
Other than host patches, which three items require a separate procedure or process to update? (Choose three.)

• A. Operating system patches
• B. Virtual Appliance updates
• C. Virtual Machine Virtual Hardware upgrades
• D. VMware Tools on machines without VMware Tools already installed
• E. Application patches within the virtual machine

Answer: ADE

Explanation: Operating system patches are related to operating system so they need a separate procedure altogether. Same is the case with VMware tools and applications patches because applications are stand alone pieces of code that need separate procedure to apply a patch.

NEW QUESTION 2
Which two High Availability (HA) Cluster admission control policies can help avoid resource fragmentation? (Choose two.)

• A. Define failover capacity by static number of hosts
• B. Define failover capacity by reserving a percentage of the cluster resources
• C. Use dedicated failover hosts
• D. Use Virtual Machine Monitoring

Answer: AC

NEW QUESTION 3

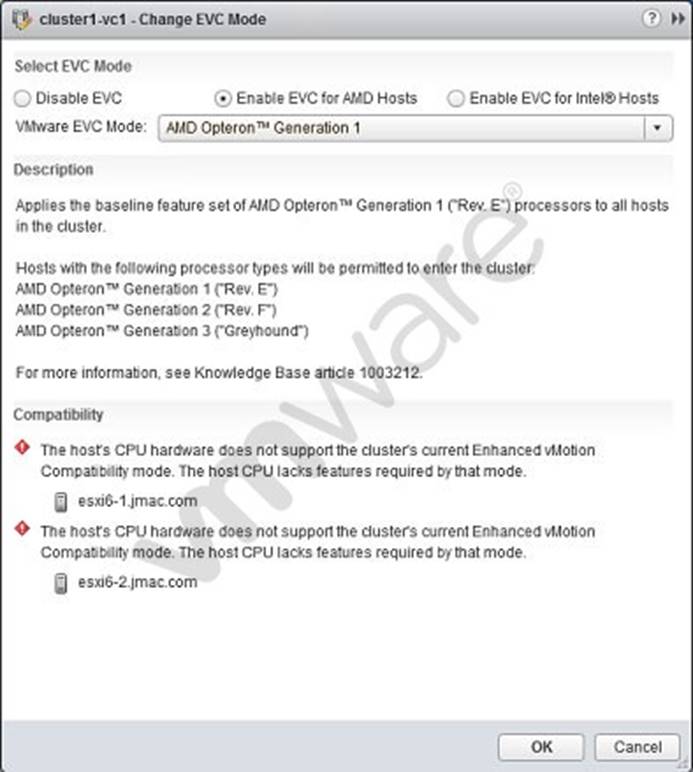

Refer to the Exhibit.

-- Exhibit --
An administrator attempts to enable Enhanced vMotion Compatibility (EVC) on a cluster. The operation results in a compatibility error, as shown in the exhibit.
What is the likely cause of this error?

• A. The CPUs in the ESXi host are not AMD CPUs.
• B. The CPUs in the ESXi host do not support hardware virtualization capabilities.
• C. The XD/NX CPU features have not been enabled in the BIOS of the server.
• D. There is no shared storage between the hosts in the cluster.

Answer: A

NEW QUESTION 4
An administrator receives a report that no real time statistics are available for a virtual machine in the vCenter Server inventory.
Which two statements indicate likely causes of the problem? (Choose two.)

• A. The virtual machine is powered off.
• B. The host containing the virtual machine is disconnected from vCenter Server.
• C. There is insufficient real time data to display the information.
• D. The vCenter Server service is not running.

Answer: AB

NEW QUESTION 5
An administrator is configuring the Maximum Transmission Unit value on a vSphere Distributed Switch.
Which two options are typical values for ESXi networking? (Choose two.)

• A. 1492
• B. 1500
• C. 9000
• D. 9089

Answer: BC

NEW QUESTION 6
Which three features can be enabled for a new host cluster? (Choose three.)

• A. Storage Distributed Resource Scheduling
• B. High Availability
• C. Fault Tolerance
• D. Distributed Resource Scheduling
• E. Virtual SAN

Answer: BDE

NEW QUESTION 7
When is it possible to place a VMFS5 datastore in maintenance mode?

• A. When it is a member of a Storage DRS cluster
• B. When it is a member of Virtual SAN cluster
• C. When it is a member of a multi-extent datastore
• D. When it is a member of a Virtual Volume

Answer: A

NEW QUESTION 8

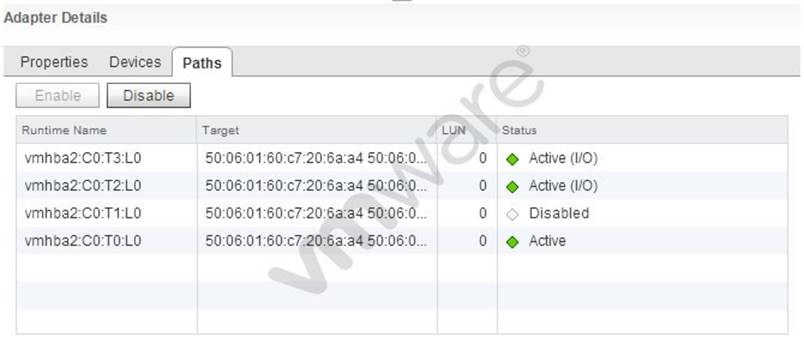

Refer to the Exhibit.

A storage administrator has reported that full utilization of all bandwidth from an ESXi 6.x host is not being seen. In troubleshooting the issue, the Adapter details are shown in the Exhibit.
Based on the exhibit, what is cause of the issue?

• A. The array is not setup to use the correct multipathing policy.
• B. There are no virtual machines on the ESXi host.
• C. Not all links are used because a path is disabled.
• D. Another path needs to be configured.

Answer: C

NEW QUESTION 9
Which three statements are true regarding Fault Tolerance? (Choose three.)

• A. Applications need to be continuously available to users.
• B. Applications without native clustering capabilities can be protected.
• C. Custom clustering solutions are complicated to configure and maintain.
• D. Applications that have 16 vCPUs are supported.
• E. Prevents application crashes by analyzing the workload and correcting problems.

Answer: ABC

NEW QUESTION 10
An administrator is attempting to power on a virtual machine, but the task is hanging at 95%.
What three scenarios best explain why this problem is happening? (Choose three.)

• A. A virtual machine question is currently being posed to the administrator.
• B. Another task for the virtual machine or other component is already in progress.
• C. The VMware High Availability cluster has insufficient resources to guarantee failover.
• D. The host has lost access to the storage device containing the virtual machine files.
• E. The host is under resource contention and unable to power on the virtual machine.

Answer: ABC

NEW QUESTION 11
A vApp named Sales has a Memory Limit of 32 GB and a CPU Limit of 12,000 MHz. There are three virtual machines within the vApp:
✑ Sales-DB -- Has a memory reservation of 20 GB.
✑ Sales-DC -- Has a memory reservation of 8 GB.
✑ Sales-Web -- Has a memory reservation of 8 GB.
Which statement is correct?

• A. All three virtual machines can power on, but will have memory contention.
• B. All three virtual machines can power on without memory contention.
• C. Only two of the three virtual machines can power on.
• D. Only one of the virtual machines can power on.

Answer: C

NEW QUESTION 12
Which two statements are true about VMFS5 datastores on ESXi 6.x? (Choose two.)

• A. Virtual Disk (VMDK) size can be larger than 2TB.
• B. Datastore extent size can be larger than 2TB.
• C. Only Physical Mode Raw Device Map (Passthrough-RDM) can be larger than 2TB.
• D. 2MB block size is required to support larger than 2TB file size.

Answer: AB

NEW QUESTION 13
An administrator is setting up vSphere Auto Deploy to deploy 25 ESXi 6.x hosts using the vCenter Server Virtual Appliance (vCSA). What would be considered best practices for Auto Deploy? (Choose three.)

• A. Enable vSphere HA on the cluster.
• B. Protect the vCenter server with Fault Tolerance.
• C. Install the Auto Deploy service on the VCSA.
• D. Include the vmware-fdm VIB in the image profile.
• E. Use PowerCLI to write a rule that assigns a custom image profile to the target hosts.

Answer: ADE

Explanation: Reference: http://pubs.vmware.com/vsphere-50/index.jsp?topic=%2Fcom.vmware.vsphere.install.doc_50%2FGUID-980D9E38-633E-4557-9144-AC422FA239C5.html

NEW QUESTION 14
What is true regarding datastores on ESXi 6.x?

• A. NFS 4.1 datastore does not support Fault Tolerance (FT)
• B. VMFS3 and VMFS5 datastores can be newly created
• C. NFS datastore can be concurrently mounted using NFS 4.1 on one host and NFS on another
• D. NFS 3.0 datastore does not support Fault Tolerance (FT)

Answer: A

NEW QUESTION 15
Which functions can be performed with the Plug-in Manager? (Choose two.)

• A. Enable an installed plug-in
• B. Remove permissions for a plug-in
• C. View the status of installed plug-ins
• D. Uninstall a plug-in

Answer: AC

Explanation: Reference: http://www.kumatech.ca/download/docs/110_6081-EN_R3_HIT_VE_Installation_Guide_web.pdf (page 13)

NEW QUESTION 16
After installation of a host in your test environment, you need to move it to production. The only major change that needs to be made is that the hostname of the server needs to change.
What are two ways that an administrator can change the host name without editing configuration files on the host directly? (Choose two.)

• A. Login to the Direct Console User Interface and change it from here.
• B. Edit the Default TCP/IP Configuration from the vSphere Web Client.
• C. Use the Ruby vSphere Client to send a script to the ESXi host that updates the hostname.
• D. Update the information in DNS and the ESXi host will automatically update with these changes.

Answer: AB

NEW QUESTION 17
A vCenter Operations Manager 5.7 environment is upgraded to vRealize Operations. After the upgrade, the analytics services fail to start.
Which three steps must be taken to resolve the problem? (Choose three.)

• A. Take the vRealize Operations cluster offline.
• B. Delete the activity persistence files.
• C. Bring the cluster back online.
• D. Remove any unresponsive nodes.
• E. Stop the CaSA service.

Answer: ABC

NEW QUESTION 18
An administrator creates a DRS cluster of eight ESXi 6.x hosts. There are 10 virtual machines balanced across the hosts. An attempt to place the first host into maintenance mode fails.
What are two reasons that the host failed to enter maintenance mode? (Choose two.)

• A. The DRS cluster Automation Level is set to Partially Automated mode.
• B. One of the virtual machines on the ESXi Host entering maintenance mode is configured with a DRS Host affinity rule Should run on hosts in group.
• C. One of the virtual machines on the ESXi Host entering maintenance mode is configured with a DRS Host affinity rule Must run on hosts in group.
• D. One of the virtual machines on the ESXi Host entering maintenance mode is configured with an individual Automation Level set to Partially Automated.

Answer: AD

NEW QUESTION 19
An administrator has deployed a vCenter Server Appliance to manage a virtual environment.
The administrator has been asked to develop a plan for handling major upgrades to the application.
What should be included in the upgrade plan?

• A. Utilize vCenter Configuration Manager to upgrade the vCenter Server in place
• B. Install a new vCenter Server and import the information from the existing vCenter Server
• C. Install a new vCenter Server over the existing vCenter Server as an in-place upgrade
• D. Utilize Update Manager to upgrade the vCenter Server in place

Answer: B

Explanation: Page 131 of vsphere-update-manager-50-install-administration-guide.pdf
NOTE
Update Manager 5.0 does not support virtual machine patch baselines.
If a host is connected to vCenter Server by using an IPv6 address, you cannot scan and remediate virtual machines and virtual appliances that run on the host.
Remediation of VMware vCenter Server Appliance is not supported. For more information about upgrading the virtual appliance, see the vCenter Server upgrade documentation.
Page 56 of vsphere-esxi-vcenter-server-50-upgrade-guide.pdf
Upgrade the VMware vCenter Server Appliance
Because the VMware vCenter Server Appliance was first released with vSphere 5.0, upgrading the appliance is not required until a future release. This information helps you plan for future upgrades.
Procedure
1. Deploy the new version of the vCenter Server Appliance. The new appliance has a default network configuration, and the vCenter Server service is unconfigured and disabled.
2. Connect to both the old and new appliances in separate browser windows.
3. In the Upgrade tab of the new appliance, select destination for the appliance role, and click Set role.
4. In the Upgrade tab of the old appliance, select source for the appliance role, and click Set role.
5. In each appliance, click Establish Trust. The local appliance key appears.
6. In the new appliance, copy the local appliance key.
7. Paste the local appliance key into the Remote appliance key field of the old appliance.
8. Click Import remote key in the old appliance.
9. In the old appliance, copy the local appliance key.
10. Paste the local appliance key into the Remote appliance key field of the new appliance.
11. Click Import remote key in the new appliance.
12. In the new appliance, click Import, and click Start import.
The new appliance shuts down the old appliance and assumes the network identity of the old appliance. This process can take several minutes. When the import is complete, the new vCenter Server Appliance starts.

NEW QUESTION 20
✑ An administrator wants to add a web server to an existing multi-tier application consisting of three virtual machines:
✑ A web server
✑ A database server
✑ An application server
The web server should be added to the application when the primary web server reaches:
✑ 70% vCPU utilization
✑ 55% active memory
Which option will achieve this result?

• A. Create a virtual machine alarm with an action to run a script that starts a new instance of the web server.
• B. Create a host cpu and memory alarm with an action to run a script that starts a new instance of the webserver.
• C. Configure HA application monitoring for the web server and set it to trigger deployment of a new instance of the web server.
• D. Configure Fault Tolerance on the virtual machine and leave the secondary machinedisabled until needed.

Answer: A
