NEW QUESTION 1
An NSX administrator has observed connectivity issues between the NSX Manager and the KVM Transport Node.
Which two log files could be used to troubleshoot the issue on the KVM Transport Node? (Choose two.)

• A. /var/log/vmware/nsx-syslog
• B. /usr/vmware/log/syslog
• C. /var/log/nsx/syslog
• D. /usr/vmware/nsx-syslog
• E. /var/log/syslog

Answer: AE

NEW QUESTION 2
Which component does the hyperbus interface (vmk50) provide network connectivity to?

• A. containers running on ESXi/KVM transport nodes
• B. virtual machines and containers running across transport nodes
• C. virtual machines running on the same hypervisor
• D. virtual machines running in the same segment

Answer: A

NEW QUESTION 3
An NSX administrator would like to configure syslog for a KVM transport node. Which host log files could be exported to a remote syslog server?

• A. /var/log/vmware/nsx-syslog
• B. /var/log/cfgAgent.log
• C. /var/log/nsx-audit.log
• D. /var/log/cloudnet/nsx-ccp.log

Answer: A

NEW QUESTION 4
How is the RouterLink port created between a Tier-1 Gateway and Tier-0 Gateway?

• A. Automatically created when Tier-1 is created.
• B. Manually create a Segment and connect to both Tier-1 and Tier-0 Gateways.
• C. Manually create a Logical Switch and connect to bother Tier-1 and Tier-0 Gateways.
• D. Automatically created when Tier-1 is connected with Tier-0 from NSX UI.

Answer: D

Explanation:
https://docs.vmware.com/en/VMware-NSX-T-Data-Center/3.0/administration/GUID-3F163DEE-1EE6-4D80-B

NEW QUESTION 5
How is the intra-tier transit link connection created between SR and DR for a Tier-0 Gateway?

• A. Manually create a gateway interface and mark it as transit.
• B. Automatically created when DR is created.
• C. Automatically created when SR is initialized.
• D. Manually create external uplink interface and mark it as transit.

Answer: C

NEW QUESTION 6
Which three steps are required to create an IPsec VPN tunnel? (Choose three.)

• A. Create an IPsec service.
• B. Add a local endpoint.
• C. Configure an IPsec session.
• D. Configure a distributed firewall policy.
• E. Add a logical switch.

Answer: ABC

NEW QUESTION 7

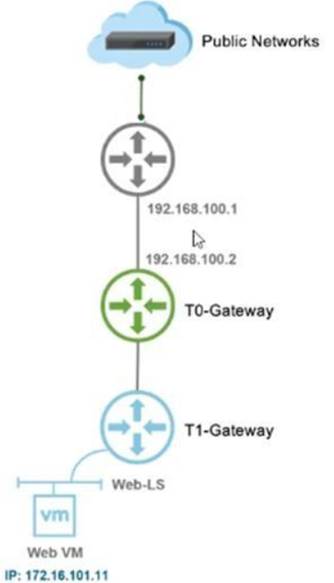

Refer to the exhibit.

Which NAT type must the NSX-T Data Center administrator create on the Tier-0 or Tier-1 Gateway to allow Web VM to initiate communication with public networks?

• A. SNAT
• B. Reverse NAT
• C. DNAT
• D. 1:1 NAT

Answer: A

NEW QUESTION 8
Which two statements describe the characteristics of an Edge Cluster in NSX-T 3.0 Data Center? (Choose two.)

• A. can have a maximum of 8 edge nodes
• B. must have only active-active edge nodes
• C. can have a maximum of 10 edge nodes
• D. can contain multiple types of edge nodes (VM or bare metal)
• E. must contain only one type of edge nodes (VM or bare metal)

Answer: CD

Explanation:
https://docs.vmware.com/en/VMware-NSX-T-Data-Center/3.0/installation/GUID-14183A62-8E8D-43CC-92E0

NEW QUESTION 9
What are three NSX Manager roles? (Choose three.)

• A. cloud
• B. manager
• C. zookeeper
• D. policy
• E. master
• F. controller

Answer: BDF

NEW QUESTION 10
Which statement Is true regarding the audit user account? (Choose two.)

• A. The admin user must set the password for the audit account to log in to NSX Manager.
• B. The administrator must run the set audit user password <password> command.
• C. The audit user has read-write access to the NSX Manager.
• D. The audit user is disabled by default and must be enabled to log in to the NSX Manager.
• E. The administrator must run the set user audit password <password> command.

Answer: AE

NEW QUESTION 11
Which two logical router components span across all transport nodes? (Choose two.)

• A. DISTRIBUTED_ROUTER_TIER0
• B. SERVICE_ROUTER_TIER0
• C. TIER0_DISTRIBUTED_ROUTER
• D. DISTRIBUTED_ROUTER_TIER1
• E. SERVICE_ROUTER_TIER1

Answer: AD

NEW QUESTION 12
When a stateful service is enabled for the first time on a Tier-0 Gateway, what happens on the NSX Edge node?

• A. SR and DR doesn’t need to be connected to provide any stateful services.
• B. DR is instantiated and automatically connected with SR.
• C. SR is instantiated and automatically connected with DR.
• D. SR and DR is instantiated but requires manual connection.

Answer: C

NEW QUESTION 13
Which two statements are true about the implementation of multicast in NSX-T Data Center? (Choose two.)

• A. Multicast routing is implemented with PIM Sparse-Mode.
• B. IGMP Snooping is used to populate multicast forwarding tables.
• C. Tier-0 gateways can be the Rendezvous Point.
• D. Multicast is supported in ESXi and KVM transport nodes.
• E. An Edge can be the Rendezvous Point.

Answer: AB

Explanation:
https://docs.vmware.com/en/VMware-NSX-T-Data-Center/3.0/nsxt_30_admin.pdf

NEW QUESTION 14
Which three teaming policy modes are supported by NSX-T Data Center? (Choose three.)

• A. Destination MAC
• B. Load Balanced Source IP
• C. Failover Order
• D. Destination Port
• E. Load Balanced Source MAC
• F. Load Balanced Source

Answer: CEF

NEW QUESTION 15
An NSX administrator is creating a Tier-1 Gateway configured in Active-Standby High Availability Mode. In the event of node failure, the failover policy should not allow the original failed node to become the Active node upon recovery.
Which failover policy meets this requirement?

• A. Non-Preemptive
• B. Preemptive
• C. Enable Preemptive
• D. Disable Preemptive

Answer: A

NEW QUESTION 16
Which two commands does an NSX administrator use to check the IP address of the VMkernel port for the GENEVE protocol on the ESXi transport node? (Choose two.)

• A. esxcfg-nics -1
• B. net-dvs
• C. esxcli network nic list
• D. esxcfg-vmknic -1
• E. esxcli network ip interface ipv4 get

Answer: DE

NEW QUESTION 17
Which statement describes the VMware Virtual Cloud Network Vision?

• A. Virtual Cloud Network connects and protects virtual machines running in KVM environments.
• B. Virtual Cloud Network connects and protects virtual machines running in vSphere environments.
• C. Virtual Cloud Network connects and protects applications, regardless of their physical locations.
• D. Virtual Cloud Network connects and protects applications and data, regardless of their physical locations.

Answer: D

NEW QUESTION 18
Which discovery protocol is supported for hypervisor transport nodes?

• A. Adobe Real-time CDP
• B. Neighbor Discovery Protocol
• C. Cisco Discovery Protocol
• D. Link Layer Discovery Protocol

Answer: D

NEW QUESTION 19
......
