NEW QUESTION 1

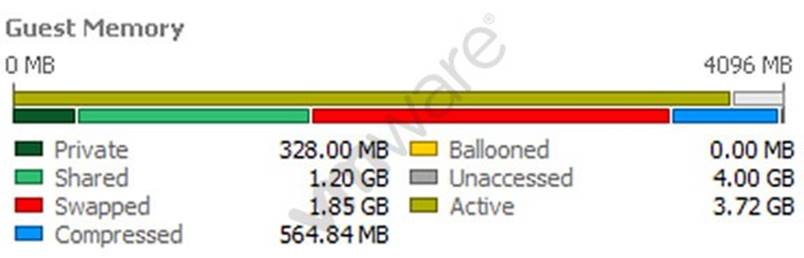

Refer to the Exhibit.

-- Exhibit --
A 4 GB Memory virtual machine is experiencing extended memory issues, as shown in the Exhibit.
What potential issues could be attributed to this memory pressure?

• A. A limit is imposed on the virtual memory of this virtual machine.
• B. The Balloon driver has been uninstalled.
• C. A limit has been imposed on the Virtual CPU of the virtual machine.
• D. Storage IO control has been enabled for the virtual machine causing the swapped memory.

Answer: AB

NEW QUESTION 2
An administrator enables High Availability (HA) on a Virtual SAN cluster.
Which network is used for HA Network Heatbeat configuration?

• A. The Management network.
• B. The vMotion network.
• C. The Virtual SAN network.
• D. The Provisioning Traffic network.

Answer: C

NEW QUESTION 3
An administrator is virtualizing a physical application server and adding it to an existing multi-tiered vApp. The application license is currently tied to the physical NIC's MAC address, so the administrator needs to ensure the license will function properly in the virtual machine.
Which two actions can the administrator take to satisfy this task? (Choose two.)

• A. Set the MAC address for the vNIC in the guest operating system.
• B. Install the physical server's NIC into the ESXi host.
• C. Configure the MAC address for the vNIC using the vSphere Web Client.
• D. Assign the physical server NIC's MAC address in the vSphere Distributed Switch.

Answer: AC

NEW QUESTION 4
What are the three service offerings provided by a VMware-powered public cloud? (Choose three.)

• A. Committed
• B. Transient
• C. Dedicated
• D. Highly Elastic
• E. Basic

Answer: ACE

Explanation: Reference: http://www.vmware.com/files/pdf/cloud/VMware-ServiceDef-Public-Cloud-11Q1-White-Paper.pdf (page 6, see service offerings)

NEW QUESTION 5
Which two Fibre Channel zoning options are supported with vSphere 6.x? (Choose two.)

• A. Single-Initiator
• B. Single-Initiator-Single-Target
• C. Multiple-Initiators-Single-Target
• D. Multiple-Initiators-Multiple-Targets

Answer: AB

NEW QUESTION 6
Which two networking connection types can be configured on a virtual switch? (Choose two.)

• A. Virtual machine portgroups
• B. VMkernel services (such as NFS, iSCSI, or vMotion) to the physical network
• C. Web services over the Management Network
• D. NFS and FCoE storage services

Answer: AB

NEW QUESTION 7
Which three features are not supported when using Fault Tolerance in vSphere 6.x? (Choose three.)

• A. Virtual Volumes (VVOLS)
• B. Storage vMotion
• C. Virtual Machine Component Protection
• D. vMotion
• E. vSphere Distributed Switches

Answer: ABC

NEW QUESTION 8
A High Availability (HA) cluster is configured to respond to a given number of host failures. The cluster contains virtual machines configured with these settings:
✑ VM1 has a 1GHz CPU reservation and no Memory reservation
✑ VM2 has a 2GHz CPU reservation and no Memory reservation
✑ VM3 has no CPU reservation and no Memory reservation
Given this information, what is the correct slot size for the cluster?

• A. The CPU Reservation should be set to 32MHz and the memory reservation should beset to 32MB plus memory overhead.
• B. The CPU reservation should be set to 1 GHz and the memory reservation should be set to 0MB plus memory overhead.
• C. The CPU reservation should be set to 2 GHz, and the memory reservation should be set to 0MB plus the virtual machine memory overhead.
• D. The CPU reservation should be set to 2 GHz, and the memory reservation should be set to 32MB, plus the virtual machine memory overhead.

Answer: C

NEW QUESTION 9
A vApp template recently added to a Content Library is not displayed.
Which two actions could correct this problem? (Choose two.)

• A. Manually synchronize the library
• B. Select the Download all library content immediately option
• C. Select the Sync subscribed library option
• D. Manually download the vApp template

Answer: AB

NEW QUESTION 10
An administrator is moving a virtual machine into a resource pool. The VM and resource pool are configured as shown:
VM configuration:
✑ 2GHz CPU reservation
✑ 1GB Memory limit
Resource Pool configuration:
✑ 6GHz CPU reservation
✑ 1GB Memory reservation
✑ No limit to memory
What happens to the virtual machine's resource settings when it is moved into the pool?

• A. The VM inherits the resource settings of the resource pool if expandable reservations is enabled.
• B. The VM's reservations and limits are ignored and removed.
• C. The VM keeps the 2GHz CPU reservation but receives the 1GB memory reservation.
• D. The VM keeps the 2GHz CPU reservation and the 1GB Memory limit.

Answer: D

NEW QUESTION 11
An administrator is installing vCenter Server for an environment that has 40 ESXi 6.x Hosts and 150 virtual machines.
Which database would meet the minimal requirements needed for this task?

• A. vFabric Postgres
• B. Microsoft SQL Express 2008
• C. Microsoft SQL Server 2014
• D. Oracle 11g

Answer: C

NEW QUESTION 12
Which load balancing policy, previously limited to vSphere Distributed Switches, is now available on vSphere Standard Switches with vSphere 6.x?

• A. Route based on physical NIC workload
• B. Route based on IP Hash
• C. Route based on the originating virtual port
• D. Route based on Source MAC Hash

Answer: A

NEW QUESTION 13

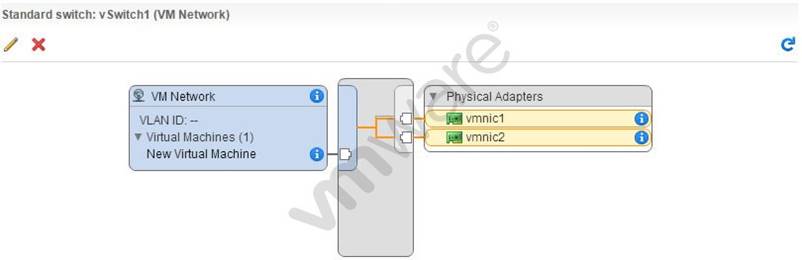

Refer to the Exhibit.
-- Exhibit --

-- Exhibit --
An administrator has configured network connectivity for a new virtual machine, as shown in the Exhibit.
What will occur with the network traffic of this virtual machine when communicating externally from vSwitch1?

• A. The virtual machine will communicate on both uplinks
• B. The virtual machine will only communicate on vmnic1
• C. The virtual machine will only communicate on vmnic2
• D. The virtual machine will fail to communicate externally

Answer: D

NEW QUESTION 14
An administrator is using the Host Failures to Tolerate Admission Control Policy for a vSphere High Availability (HA) cluster. When configuring this setting on the cluster,
the administrator sees this error message:
Insufficient resources to satisfy HA failover level on cluster
What are two likely causes for the error? (Choose two.)

• A. The hosts in the cluster are disconnected.
• B. A host in the cluster is displaying an HA error.
• C. Distributed Resource Scheduler has not been configured on the cluster.
• D. Virtual Machine Component Protection has not been turned on.

Answer: AB

NEW QUESTION 15
An administrator has recently upgraded their Update Manager infrastructure to vSphere
5.x. Several hosts and virtual machines have not been upgraded yet.
Which vSphere component when upgraded will have the least impact to the existing environment?

• A. Virtual Machine Hardware
• B. ESX Hosts
• C. VMFS datastores
• D. VMware Tools

Answer: D

Explanation: VMware Tools isn't a single application but a set of drivers, services and user processes that's installed in a guest operating system. They add a wide assortment of functionality to VMware infrastructures -- everything from improving color depth and video resolution in the vSphere Client to memory optimization.
Typically, an outdated version of VMware Tools doesn't have an immediate impact. But with every update to vSphere, you'll likely have to update VMware Tools on every virtual machine.

NEW QUESTION 16
An attempt to enable vSphere Fault Tolerance for a powered-on virtual machine fails.
Which two scenarios would result in this failure? (Choose two.)

• A. The virtual machine has three vCPUs configured.
• B. The host on which the virtual machine is running has insufficient memory resources.
• C. The virtual machine has insufficient resources to accommodate full reservation plus the overhead memory.
• D. VMware High Availability is enabled on the cluster of which this host is a member.

Answer: BC

NEW QUESTION 17
A virtual machine is experiencing performance issues. The following performance metrics are observed:
✑ CPU usage value for the virtual machine is above 90%
✑ CPU ready value for the virtual machine is above 20%
Which two activities will likely resolve the performance issues? (Choose two.)

• A. Set a CPU reservation for the virtual machine.
• B. Increase the CPU limit on the virtual machine.
• C. Decrease CPU shares equally for all virtual machines on the host.
• D. Increase CPU shares equally for all virtual machines on the host.

Answer: AB

NEW QUESTION 18
An administrator enables vSphere High Availability (HA) on an existing cluster with a large number of hosts and virtual machines. The administrator notices that the setup of vSphere HA on some of the hosts is failing.
What step, if taken, might resolve this issue?

• A. Increase the value of the config.vpxd.das.electionWaitTimeSec setting.
• B. Set the value of vpxd.das.aamMemoryLimit to 256.
• C. Set the value of the das.useDefaultIsolationAddress setting to False.
• D. Increase the value of the das.iostatsinterval setting.

Answer: A

NEW QUESTION 19
You are creating a virtual machine in the Web Client using the New Virtual Machine wizard.
Which two steps are required? (Choose two.)

• A. Select a valid name.
• B. Select a cluster for the compute resource.
• C. Select a network adapter.
• D. Select the virtual machine compatibility.

Answer: AD

NEW QUESTION 20
Which three traffic types are available services options when configuring a vmkernel port? (Choose three.)

• A. Provisioning Traffic
• B. Virtual Volumes Traffic
• C. vSphere Replication NFC Traffic
• D. Virtual SAN Traffic
• E. FCoE Traffic

Answer: ACD
