NEW QUESTION 1
What are the three possible port states when using RSTP? (Choose two.)

• A. Forwarding
• B. Learning
• C. Discarding
• D. Listening
• E. Tagging

Answer: ABC

NEW QUESTION 2
What are two interarea OSPF LSA types? (Choose two.)

• A. Type 1 router LSAs
• B. Type 2 network LSAs
• C. Type 3 summary LSAs
• D. Type 4 ASBR summary LSAs

Answer: CD

NEW QUESTION 3
Which Junos feature allows you to combine multiple interface into a single bundle?

• A. VRRP
• B. Virtual Classis
• C. LAG
• D. NSB

Answer: C

NEW QUESTION 4
Which statement is true about IP-IP tunnels?

• A. The time-to-live value of the original packet Is decremented.
• B. IP-IP tunnels are protocol agnostic.
• C. The packet is encapsulated unchanged before entering the tunnel
• D. The packet header is replaced before entering the tunnel

Answer: C

NEW QUESTION 5
Exhibit.
***Exhibit is Missing***
Which two statements are correct. (Choose two.)

• A. Route 2001:2244:3311:321:233::.128 has been prepended.
• B. The active path to2001:2244:3311:321:233::.128 will exist using interface irb.433.
• C. Route 2001:2244:3311:321:233::.128 will be advertised to an EBGP peer in AS 62553.
• D. The AS path shows two hops to their IBGP routers within autonomous system 62553.

Answer: AD

NEW QUESTION 6
What are two advantages of a point-to-point OSPF adjacency? (Choose two.)

• A. Only a DR is elected.
• B. No type 1 LSAs are generated.
• C. No Type 2 LSAs are generated.
• D. There are quicker neighbor establishment.

Answer: CD

NEW QUESTION 7
Your network is configured with dynamic inspection (DAI) using the default for all the DHCP and ARP related configurations> You just added a new device connected to a trunk port and configured it to obtain an IP address using DHCP.
Which two statements are correct in this scenario? (Choose two.)

• A. The DHCP server assign the IP addressing information to the new device.
• B. DAI validates the ARP packets for the new device against the DHCP snooping database.
• C. The SRP request and response packets for the new device will bypass DAI.
• D. DHCP snooping adds the DHCP assigned IP address for the device to its database.

Answer: AD

NEW QUESTION 8
Which statement is true when using LAGs with an EX4300?

• A. Speeds on member links can differ.
• B. Member links must be contiguous.
• C. Half duplex is supported on the LAG.
• D. You can have up to 16 member links per LAG.

Answer: D

NEW QUESTION 9
Click the Exhibit button.

Referring to the exhibit, Router-1 is attempting to form an EBGP session with Router-2. However, BGP routes are never exchanged between Router-1 and Router-2.
What is causing the problem?

• A. The TCP-MSS value is set too low
• B. The EXT group is not configured as an external type BGP peering session
• C. The EBGP session is configured to use the wrong AS
• D. The keep all statement is preventing the session from establishing

Answer: B

NEW QUESTION 10

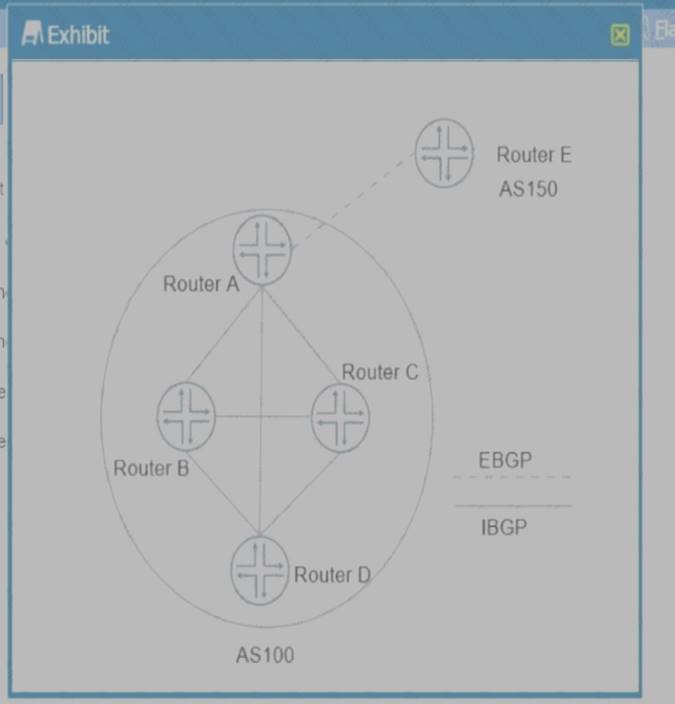

Exhibit.

Which two statement are correct? (Choose two.)

• A. Router a sends routers learned from Router E to Router B, Router C, and Router D.
• B. Router A does not send routes learned from Router D to Router B and Router C.
• C. Router A sends routers learned from Router D to Router B and router C.
• D. Router A does not send routers learned from Router E to Route B, Router C, and Router D.

Answer: AB

NEW QUESTION 11
Which two sequences correctly describe the processing order of firewall filters on an EX Series switch? (Choose two.)

• A. router filter > VLAN filter > port filter > transmit packet
• B. port filter > VLAN filter > router filter > transmit packet
• C. receive packet > port filter > VLAN filter > router filter
• D. receive packet > router filter > VLAN filter > port filter

Answer: BD

NEW QUESTION 12
You are adding a new EX4300 member switch to your existing EX4300 Virtual Chassis. However, the new member is not running the same Junos version as the other members.
By default, what is the expected behavior in this scenario?

• A. The virtual Chassis will transition into a brain situation between the existing master Routing Engine and the switch running the different version.
• B. The new switch will be assigned a member ID and then placed in an inactive state.
• C. The new switch will be assigned a member ID and then placed in an inactive state.
• D. The new switch is not recognized by the virtual Chassis.

Answer: C

NEW QUESTION 13
Exhibit.

In the exhibit, each IP subnet in the network is associated with a unique VLAN ID Which action wilt ensure that Host C will communicate with host A and Host B?

• A. Configure an IRB interface for each VLAN and associate it with its corresponding VLAN
• B. Configure all switch ports connecting to the host devices as access ports associated with a common VLAN.
• C. Configure a port-based ACL that permits inter-VLAN routing for all configured VLANs.
• D. Configure all switch ports connecting to the host devices as trunk ports associated with all VLANS.

Answer: B

NEW QUESTION 14
Exhibit.

Which statement is true about the configuration shown in the exhibit?

• A. Both the add-community and local-pref import policies will be evaluated routes are learned from neighbor 172.30.2.1.
• B. Only the local –pref import will be evaluated when routes are learned neighbor 172.301.1.
• C. No import policy will be evaluated when routes are learned from neighbor 172.30.2.1.
• D. Only the add-community import policy will be evaluated routers are learned neighbor 172.30.1.1.

Answer: B

NEW QUESTION 15
Click the Exhibit button.

Referring to the exhibit, which two statements about BGP prefixes advertised by R1 to AS 65501 are true? (Choose two.)

• A. R1 will modify the originator ID attribute in prefixes advertised to AS 65501
• B. R1 will modify the AS path attribute in prefixes advertised to AS 65501
• C. R1 will modify the next-hop attribute in prefixes advertised to AS 65501
• D. R1 will modify the cluster list attribute in prefixes advertised to AS 65501

Answer: AC

NEW QUESTION 16
Exhibit.

Which statement is true about the configuration shown in the exhibit?

• A. The preferred next hop is 172.30.25.5.
• B. The preference for the 172.30.25.5.1 next hop is 7.
• C. The preference for the 172.30.25.1 next hop is 5.
• D. 172.30.25.5.1 is the preference next hop.

Answer: A

NEW QUESTION 17
Which device is used to separate collision domains?

• A. Switch
• B. Router
• C. Hub
• D. firewall

Answer: A

NEW QUESTION 18

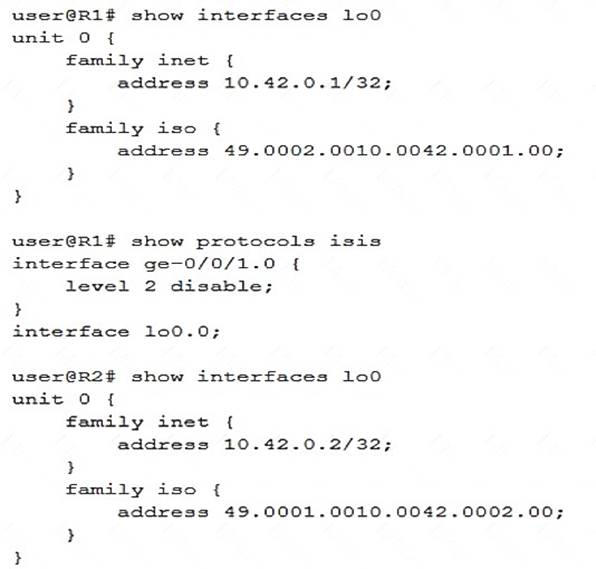

Click the Exhibit button.

Referring to the exhibit, which configuration change is needed for an IS-IS Level 1 adjacency between R1 and
R2?

• A. Configure the lo0 family ISO address 49.0002.0010.0042.0002.00 on R2
• B. Configure the lo0 family ISO address 49.0002.0010.0042.0002.00 on R1
• C. Enable Level 2 on R1’s ge-0/0/1 interface
• D. Disable Level 2 on R2’s ge-0/0/1 interface

Answer: A

NEW QUESTION 19
Click the Exhibit button.

Referring to the output shown in the exhibit, which two statements are true?

• A. The route is active
• B. The route is not active
• C. The route is a generate route
• D. The route is an aggregate route

Answer: AC

NEW QUESTION 20
Which two OSPF header fields must match to form an adjacency over a broadcast connection? (Choose two.)

• A. Router priority
• B. Options
• C. Hello interval
• D. neighbor

Answer: BC

NEW QUESTION 21

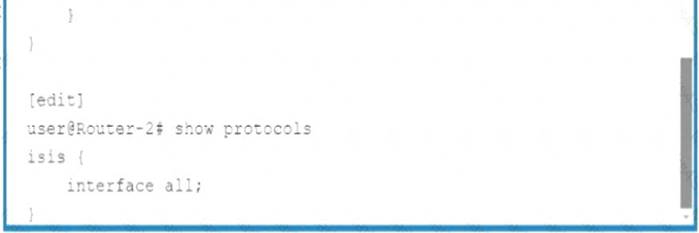

Exhibit.



Referring to the exhibit, Router-1 and Router-2 are failing to form an IS-IS adjacency. What should you do to solve the problem?

• A. Remove the overloaded statement from Router-1.
• B. Change the IP subnet masks to match on the ge-0/0/2 interfaces of both routers.
• C. Remove the ISO address from ge-0/0/2 on Router-1.
• D. Change the ISO areas on the Io0 interfaces to match on both routers.

Answer: D

NEW QUESTION 22
Click the Exhibit button.

Based on the output shown in the exhibit, which statement is correct?

• A. This switch has been elected as the root bridge
• B. This switch has a bridge priority of 32k
• C. The ge-0/0/15 interface is using the default port cost
• D. The ge-0/0/9 interface is using the default priority value

Answer: A
