NEW QUESTION 1

Which command allows you to execute operational mode commands while in configuration mode?

• A. activate
• B. show
• C. run
• D. set

Answer: C

NEW QUESTION 2

At which hierarchy would you configure a static MAC address for interface ge-0/0/0?

• A. [edit interfaces ge-0/0/0 unit 0]
• B. [edit interfaces ge-0/0/0]
• C. [edit interfaces ge-0/0/0 unit 0 family inet]
• D. [edit interfaces ge-0/0/0 unit 0 family inet address 172.25.11.2/24]

Answer: D

NEW QUESTION 3

Which command will completely turn off a Junos device?

• A. request system halt
• B. request chassis fpc offline
• C. request system power-off
• D. request system recover

Answer: C

NEW QUESTION 4

What are three interface prefixes for a 40-gigabit interface? (Choose three.)

• A. et
• B. es
• C. fte
• D. xe
• E. xle

Answer: ABE

NEW QUESTION 5

Which two firewall filter actions will affect a packet's class-of-service setting? (Choose two.)

• A. scheduler
• B. queue
• C. forwarding-class
• D. loss-priority

Answer: CD

NEW QUESTION 6

Click the Exhibit button

You are capturing logs to troubleshoot an issue with IS-IS; however, the logs are increasing in size too quickly.
Referring to the exhibit, which configuration statement would solve this problem?

• A. set protocols isis traceoptions flag hello detail
• B. set protocols isis traceoptions file files 10
• C. delete protocols isis traceoptions flag normal
• D. delete protocols isis traceoptions file is-is-logs.log

Answer: A

NEW QUESTION 7

Depending on the device type, Junos is built upon which two OS kernels? (Choose two.)

• A. NetBSD
• B. FreeBSD
• C. Linux
• D. OpenBSD

Answer: BC

NEW QUESTION 8

What are two protocols that the Junos OS uses to archive configuration files remotely? (Choose two.)

• A. SCP
• B. HTTP
• C. SFTP
• D. FTP

Answer: AD

NEW QUESTION 9

Which two types of traffic are processed by the Routing Engine (RE)?

• A. IP packet with the IP Options field
• B. time-to-live (TTL) expired messages
• C. ICMP destination unreachable messages
• D. OSPF update messages

Answer: BC

NEW QUESTION 10

You are in configuration mode at the top of the hierarchy. How would you save your configuration
to a file on the router?

• A. save configuration <filename>
• B. save config <filename>
• C. save <filename>
• D. save run <filename>

Answer: C

NEW QUESTION 11

Which statement is true about a virtual router routing instance?

• A. It can be used for Layer 3 VPN implementations.
• B. It can be used to create a separate routing table.
• C. An interface in the routing instance can also reside in the default routing instance.
• D. It automatically has import and export policies applied.

Answer: B

NEW QUESTION 12


Referring to the exhibit, what will be the result?

• A. The device will boot in single-user mode at the operational prompt.
• B. The device will boot into single-user mode at the shell prompt.
• C. The device will boot into multi-user mode at the shell prompt.
• D. The device will boot in multi-user mode at the configuration prompt.

Answer: C

NEW QUESTION 13

Which default login class should you select if you want the user to edit configuration files?

• A. read-only
• B. unauthorized
• C. super-user
• D. operator

Answer: C

NEW QUESTION 14

Which two statements describe a routing policy?

• A. Active and inactive routes are available for export from the routing table.
• B. A routing policy allows you to control the flow of information into the routing table.
• C. Routing policy are used to choose which routes are sent to neighbors using dynamic routing Protocols
• D. Attribute changes applied to export policies always affect the local routing table

Answer: BC

NEW QUESTION 15

What would you use as a network tool to open a secure terminal connection from a device running Junos OS to another device?

• A. SSH
• B. HTTPS
• C. RDP
• D. telnet

Answer: A

NEW QUESTION 16

What are two important steps when upgrading an SRX300 Series device? (Choose two.)

• A. Verify that enough space exists to upload the software package.
• B. Clear all alarms.
• C. Reboot the device.
• D. Verify that the NETCONF protocol is enabled.

Answer: AC

NEW QUESTION 17

What is the minimum system-defined user class required to issue clear commands?

• A. read-only
• B. super-user
• C. operator
• D. authorized

Answer: C

NEW QUESTION 18

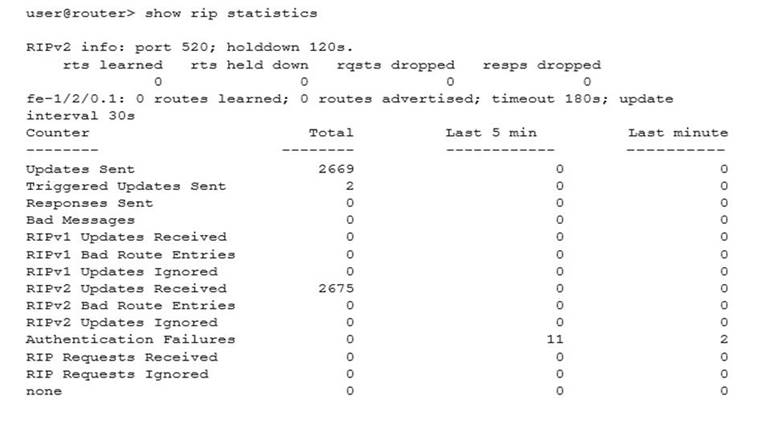

Refer to the exhibit.

A customer reports that they have recently lost connectivity to a remote site over a shared architecture. Referring to the exhibit, what is the problem?

• A. The remote link is down.
• B. The remote router has been powered off.
• C. The authentication method or key has been changed.
• D. The remote site router has been configured for OSPF.

Answer: C
