NEW QUESTION 1
Which two configuration elements are part of the Cisco Unified Communications Manager toll-fraud prevention? (Choose two.)

• A. SIP trunk security profile
• B. Calling Search Space
• C. SUBSCRIBE Calling Search Space
• D. feature control policy
• E. partition

Answer: BE

NEW QUESTION 2
A customer has Cisco Unity Connections that is integrated with LDAP. As a Unity Connection administrator, you have received a request to change the first name for VM user. Where must the change be performed?

• A. Cisco Unity Connection
• B. Cisco Unified Communications Manager end user
• C. Active Directory
• D. Cisco IM and Presence

Answer: C

NEW QUESTION 3
An engineer is configuring a BOT device for a Jabber user in Cisco Unified Communication Manager Which phone type must be selected?

• A. third-party SIP device
• B. Cisco Dual Mode for iPhone
• C. Cisco Dual Mode for Android
• D. Cisco Unified Client Services Framework

Answer: C

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/jabber/11_5/CJAB_BK_D00D8CBD_00_deployment-installation-guide-cisco-jabber115/CJAB_BK_D00D8CBD_00_deployment-installation-guide- ciscojabber115_chapter_01000.html

NEW QUESTION 4
Which two types of device are supported by the Bulk Administration Tool? (Choose two.)

• A. H.322 clients
• B. Cisco Unified IP phones (all models)
• C. SIP trunks
• D. H.225 trunks
• E. music on hold servers

Answer: AB

NEW QUESTION 5
Which issue can occur if QoS is not deployed on a Cisco Collaboration architecture across the WAN?

• A. 403 Forbidden errors on SIP calls
• B. excessive jitter
• C. unexpected shut-down on Cisco Unified Communications Manager
• D. packet fragmentation

Answer: B

NEW QUESTION 6
What is a characteristic of video traffic that governs QoS requirements for video?

• A. Video is typically variable bit rate.
• B. Voice and video traffic are different, but they have the same QoS requirements.
• C. Video is typically constant bit rate.
• D. Voice and video traffic are the same, so they have the same QoS requirements.

Answer: B

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/cucm/srnd/collab11/collab11/cac.html

NEW QUESTION 7
A network administrator deleted a user from the LDAP directory of a company. The end user shows as Inactive LOAP Synchronized User in Cisco Unified Communications Manager. Which step is next to remove this user from Cisco Unified Communications Manager?

• A. Delete the user directly from Cisco Unified Communications Manager
• B. Restart the Dirsync service after the user is deleted from LDAP directory.
• C. Execute a manual sync to refresh the local database and delete the end user.
• D. Wait 24 hours for the garbage collector to remove the user.

Answer: B

NEW QUESTION 8
Calls are being delivered to the end user in the globalized format. Where does an engineer configure the calling number into a localized format?

• A. route pattern
• B. service parameters
• C. IP phone
• D. gateway

Answer: C

NEW QUESTION 9
Refer to the exhibit.

An engineer configures a VoIP dial peer on a Cisco gateway. Which codec is used?

• A. G.711ulaw
• B. No codec is used (missing codec command).
• C. G.711alaw
• D. G.729r8

Answer: A

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/voice/dialpeer/configuration/15-mt/vd-15-mt-book/vd-dp-cfg-examp.pdf

NEW QUESTION 10
A Cisco TelePresence SX80 suddenly has issues displaying main video to a display over HDMI. Which command can you use from the SX80 admin CLI to check the video output status to the monitor?

• A. xStatus Video Output
• B. xCommand Video Status
• C. xConfiguration Video Output
• D. xStatus HDMI Output

Answer: C

NEW QUESTION 11
Which command is used in Cisco IOS XE TDM gateway to configure the voice T1/E1 controller to provide clocking?

• A. clock source line
• B. Cisco IOS XE TDM gateway T1/E1 controller cannot provide clocking.
• C. clocking source internal
• D. clocking source network

Answer: C

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/routers/access/interfaces/NIM/software/configuration/guide/4gen-t1-e1-nim-guide.html

NEW QUESTION 12
Which call flow matches traffic from a Mobile and Remote Access registered endpoint to central call control?

• A. Endpoint > Expressway-E > Expressway-C > Cisco Unified CM
• B. Endpoint > Expressway-E > Cisco Unified CM
• C. Endpoint > Expressway-C > Cisco Unified CM
• D. Endpoint > Expressway-C > Expressway-E > Cisco Unified CM

Answer: A

NEW QUESTION 13
An administrator recently upgraded a Cisco Webex DX80 through its web interface but discovered the next morning that the unit has received to its previous version. What must the administrator do to prevent this from happening again?

• A. Assign a phone security profile with secure SIP.
• B. Set the prepare cluster for rollback to pre-8-0 enterprise parameter to true.
• C. Confirm the phone load name in the phone configuration.
• D. Assign a universal device template to the phone.

Answer: C

NEW QUESTION 14
Which endpoint feature is supported using Mobile and Remote Access through Cisco Expressway?

• A. SRST
• B. SSO
• C. H.323 registration proxy to Cisco Unified Communications Manager
• D. MGCP gateway registration

Answer: C

NEW QUESTION 15
How are E.164 called-party numbers normalized on a globalized call-routing environment in Cisco Unified Communications Manager?

• A. Normalization is achieved by stripping or translating the called numbers to internally used directory numbers.
• B. Normalization is achieved by setting up calling search spaces and partitions at the SIP trunks for PSTN connection.
• C. Call ingress must be normalized before the call being routed.
• D. Normalization is not required.

Answer: A

NEW QUESTION 16
Multiple route patterns match a number. How does Cisco Unified Communications Managers determine which pattern to use?

• A. the one that comes first in numerical order
• B. the one with the longest match
• C. the one with the closest match
• D. the one that discards everything PreDot

Answer: C

Explanation:
Reference: https://www.cisco.com/c/en/us/support/docs/voice-unified-communications/unified-communications-manager-callmanager/13920-call-routing.html#bcr

NEW QUESTION 17

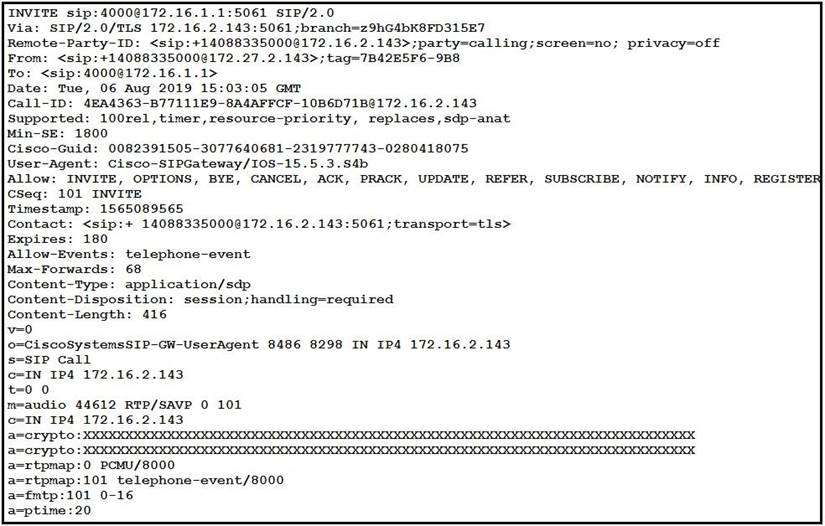

Refer to the exhibit.

This INVITE is sent to an endpoint that only supports G729. What must be done for this call to succeed?

• A. Nothing: both sides support G.729.
• B. Add a transcoder that supports G711ulaw and G.729.
• C. Add a media termination point that supports G.711ulaw and G.729.
• D. Nothing: both sides support payload type 101.

Answer: D

NEW QUESTION 18
A DTMF mismatch is occurring between an MGCP gateway registered FXS port and a Cisco Unified Communications Manager SIP trunk. Which media resource can be leveraged to interwork this mismatch?

• A. Conference Bridge
• B. Trusted Relay Point
• C. Media Termination Point
• D. Annunciator

Answer: C

NEW QUESTION 19
Which action prevents toll fraud in Cisco Unified Communications Manager?

• A. Implement toll fraud restriction in the Cisco IOS router.
• B. Implement route patterns in Cisco Unified CM.
• C. Allow off-net to off-net transfers.
• D. Configure ad hoc conference restriction.

Answer: B

Explanation:
Reference: https://www.cisco.com/c/en/us/support/docs/voice-unified-communications/unified-communications-manager-express/107626-cme-toll-fraud.html

NEW QUESTION 20
How does an administrator make a Cisco IP phone display the last 10 digits of the calling number when the call is in the connected state, and also display the calling number in the E.164 format within call history on the phone?

• A. Configure a translation pattern that has a Calling Party Transform Mask of XXXXXXXXXX.
• B. On the inbound SIP trunk, change Significant Digits to 10.
• C. Change the service parameter Apply Transformations On Remote Number to True.
• D. Configure a calling party transformation pattern that keeps only the last 10 digits.

Answer: D

NEW QUESTION 21
Which action is required if an engineer wants to have Cisco Unified Communications Manager control the configuration for an MGCP gateway?

• A. Apply the ccm-manager configuration commands to the gateway.
• B. Upload the custom configuration in the TFTP server in Cisco Unified CM.
• C. From Cisco Unified CM > Device > Gateway > Add gateway, check the auto-configuration check box.
• D. Configure the Cisco Unified CM's IP in voice service VoIP.

Answer: C

NEW QUESTION 22
When a user dials a number with a phone that is registered to the Cisco Unified Communications Manager, what is the default timeout before the number is sent?

• A. 15 seconds
• B. 5 seconds
• C. 10 seconds
• D. 3 seconds

Answer: C

Explanation:
Reference: https://www.cisco.com/c/en/us/support/docs/voice-unified-communications/unified-communications-manager-callmanager/13920-call-routing.html

NEW QUESTION 23
Which configuration step is necessary for a Cisco SIP phone to synchronize its time with a specific source?

• A. Add a Phone NTP Reference to the Date/Time Group.
• B. Assign the device to the correct region.
• C. Change the Time Format from 24-hour to 12-hour.
• D. Change the Time Zone from “America/Los_Angeles" to “Etc/GMT+8".

Answer: A

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/voice_ip_comm/cucm/admin/10_0_1/ccmcfg/CUCM_BK_C95ABA82_00_admin-guide-100/CUCM_BK_C95ABA82_00_admin-guide-100_chapter_0110.html

NEW QUESTION 24
Which protocol does Cisco Prime Collaboration Assurance use to poll the health status of different systems in the Collaboration environment?

• A. SIP
• B. SNMP
• C. SCCP
• D. SMTP

Answer: B

Explanation:
Reference: https://www.cisco.com/c/en/us/products/collateral/cloud-systems-management/prime-collaboration/guide-c07-736946.html#_Toc446633083

NEW QUESTION 25
You are adding regions in Cisco Unified Communications Manager. Which codec(s) are selected when a call is placed if you set up the max audio bit rate to use 8 kbps?

• A. G.729
• B. G 729 and G.711ulaw
• C. G.711ulaw and G 711alaw
• D. G.722

Answer: A
