NEW QUESTION 1
A storage network engineer is implementing disk-array data replication between two SAN environments in two different data centers not connected via Fibre Channel. Which SAN switch feature must be implemented?

• A. FCIP
• B. zoning merge over LAN
• C. VSAN scoping
• D. IVR

Answer: A

NEW QUESTION 2
DRAG DROP
Drag and drop the boot issues from the left onto the correct solutions on the right.
Select and Place:

• A. Mastered
• B. Not Mastered

Answer: A

NEW QUESTION 3
Two stable fabrics have overlapping domains. After a switch from the first domain is joined to a switch from the second domain, both switches become isolated. What caused the problem?

• A. The autoreconfigure option is disabled on both switches.
• B. The autoreconfigure option is enabled on both switches.
• C. The rcf-reject option is enabled on the interfaces.
• D. The rcf-reject option is disabled on the interfaces.

Answer: A

NEW QUESTION 4
Which result occurs if a device alias is renamed and then the original device alias name is used in an add command in the same session?

• A. Both commands execute successfully.
• B. The device alias is renamed and the add command is moved to the rejected list.
• C. Both commands are moved to the rejected list.
• D. The rename command is moved to the rejected list and the add command executes successfully.

Answer: A

NEW QUESTION 5
Which configuration is needed to enable manual ESP mode for Fibre Channel TrustSec on Cisco MDS switches?

• A. MDS(config)# interface fc 1/1MDS(config-if)# fcsp esp manual
• B. MDS(config)# fcsp esp manual
• C. MDS(config)# interface fc 1/1 MDS(config-if)# fcsp mode gcm MDS(config-if-fcsp)# fcsp esp manual
• D. MDS(config)# interface fc 1/1 MDS(config-if)# fcsp esp manual MDS(config-if-fcsp)# mode gcm

Answer: A

NEW QUESTION 6
DRAG DROP
Drag and drop the mechanisms of Cisco Secure Boot from the left into the correct order on the right.
Select and Place:

• A. Mastered
• B. Not Mastered

Answer: A

NEW QUESTION 7
DRAG DROP
Drag and drop the items from the left onto the correct descriptions on the right. Not all items are used.
Select and Place:

• A. Mastered
• B. Not Mastered

Answer: A

NEW QUESTION 8
A Cisco MDS Series Switch with the POAP feature boots and does not find the startup configuration. Which location is checked first when the switch enters POAP mode?

• A. USB device that contains the software image files and the switch configuration file
• B. DHCP server to bootstrap the interface IP address, gateway, DNS server, and TFTP IP addresses
• C. TFTP server where the necessary configuration files are downloaded
• D. HTTP server where the URL is used to download the software image

Answer: A

NEW QUESTION 9
After user account attributes are modified in Cisco NX-OS, when do changes to the user’s session attributes take effect?

• A. immediately
• B. at the scheduled time
• C. when the user logs out of a session
• D. when the user creates a new session

Answer: D

NEW QUESTION 10
Which Cisco NX-OS command displays the VSAN that is associated with each FCID?

• A. show fcdomain
• B. show fc2 plogi
• C. show vsan database
• D. show flogi database

Answer: A

NEW QUESTION 11

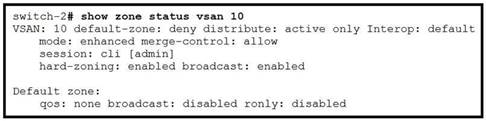

Refer to the exhibit.

A user who is logged in as an operator cannot update the zoneset. What is the cause of this issue?

• A. The fabric is locked by admin on switch-2.
• B. Hard zoning is enabled.
• C. Merge control is disabled.
• D. The switch has a conflicting domain ID.
• E. The fabric is locked by admin on another switch.

Answer: A

NEW QUESTION 12

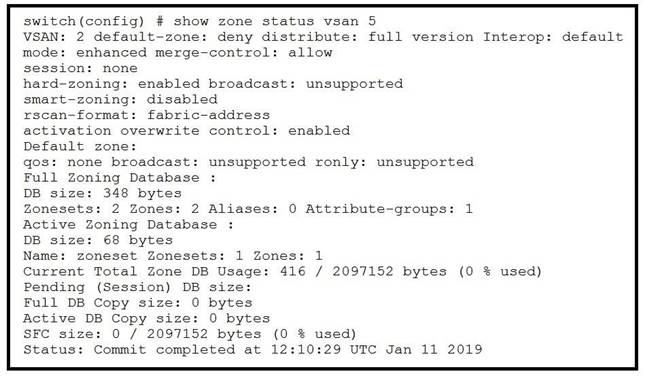

Refer to the exhibit.

Device alias information must be merged for two fabrics. Which setting must match on both fabrics before the merge can be performed successfully?

• A. device-alias mode
• B. session
• C. qos
• D. smart-zoning

Answer: A

NEW QUESTION 13
A storage administrator is enabling DH-CHAP for the first time on a Fibre Channel fabric. Which condition must the administrator consider while configuring this feature?

• A. NTP must be configured on all devices or the configuration fails.
• B. The MD5 hash must be used if TACACS+ or RADIUS authentication for FCSP is enabled.
• C. All switches on the fabric must be configured for the same password.
• D. Enabling DH-CHAP protocol feature is unsupported on FCIP interfaces.

Answer: B

NEW QUESTION 14
Which feature on MDS platforms ensures that the code that is running on the hardware platform is authentic and unmodified, while also validating the BIOS to eliminate any rootkits.

• A. Cisco Secure Boot
• B. UEFI Secure Boot
• C. Secure Unique Device Identifier
• D. BIOS Secure Boot

Answer: A

NEW QUESTION 15
Which result occurs when a VSAN is deleted that contains non-trunking ports?

• A. The ports are moved to VSAN 4094.
• B. The ports are moved to VSAN 1.
• C. The ports are removed from the configuration.
• D. The port configurations are cleared.

Answer: A

NEW QUESTION 16
Which two components are required for successful MDS USB POAP (Choose two.)

• A. NTFS formatted USB drive
• B. USB drive in port 1
• C. script named poap_script pl
• D. ENTERPRISE_PKG license
• E. system and kickstart images

Answer: CE

NEW QUESTION 17
DRAG DROP
Drag and drop the FLOGI parameters from the left onto the descriptions from which they were-derived on the right.
Select and Place:

• A. Mastered
• B. Not Mastered

Answer: A

NEW QUESTION 18
A storage administrator is connecting two previously configured switches to make a single fabric. When the E Ports are connected, the administrator sees a ZONE MERGE FAILURE message referring to the zoneset for VSAN 10 on each switch. Which command should the administrator use to allow these switches to work together?

• A. zoneset import interface fc1/1 vsan 10
• B. zoneset distribute full vsan 10
• C. zoneset overwrite-control vsan 10
• D. zoneset copy active-zoneset full-zoneset

Answer: A

NEW QUESTION 19
The principal switch on a Fibre Channel network fails to assign requested domain to a subordinate switch. What are two reasons? (Choose two.)

• A. Cisco Fabric Services distribution is not enabled on the switch.
• B. The fabric is locked.
• C. The requested domain is outside the allowed list.
• D. The persistent FC ID feature is not enabled.
• E. An existing switch already has the requested domain assigned.

Answer: CE

NEW QUESTION 20

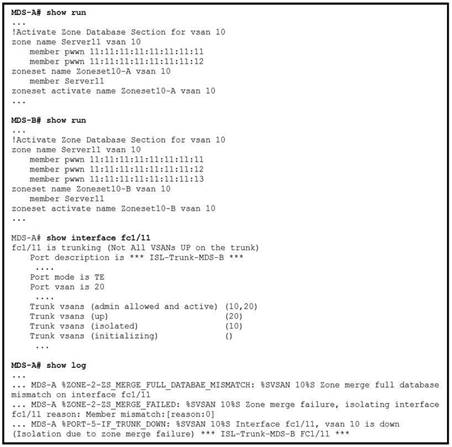

Refer to the exhibit.

A storage network engineer gets remote access to two Cisco MDS 9000 Series Switches with an ISL trunk and receives several log messages. Which set of actions resolve the problem while least affecting service?

• A. 1. Add :11:11:11:11:11:11:11:13 pwwn in zone Server11 and activate Zoneset10-A on MDS-A.2. shut/no shut interface fc1/11 on MDS-A.
• B. 1. Deactivate zone set Zoneset10-A on MDS-A.2. shut/no shut interface fc1/11 on MDS-A.
• C. 1. Add :11:11:11:11:11:11:11:13 pwwn in zone Server11 and activate Zoneset10-A on MDS-A.2. Remove VSAN 10 from the allowed VSAN range of interface fc1/11 on MDS-A and add it back in the range.
• D. 1. Explicitly import zone set Zoneset10-A on MDS-B using the zoneset import interface import fc1/11 vsan 10 command.2. Activate the zone set Zoneset10-A.

Answer: A

NEW QUESTION 21
Refer to the exhibit.

An engineer is configuring Inter-VSAN routing for two Cisco MDS switches. The FSPF cost between the switches is 500, and the Cisco MDS core virtualizes an IVR NAT domain as shown. Which statement about the topology is correct?

• A. The MDS-Core simulates an IVR NAT, and the FSPF cost is 500.
• B. The MDS-Core simulates an IVR NAT, and increases the cost to 501.
• C. The MDS-Core simulates an IVR NAT, and decreases the cost to 400.
• D. The MDS-Core simulates an IVR NAT, and increases the cost to 600.

Answer: B

NEW QUESTION 22
Which action must be performed to deactivate a VSAN without losing its configuration?

• A. Isolate it.
• B. Delete it.
• C. Rename it.
• D. Suspend it.

Answer: D

NEW QUESTION 23

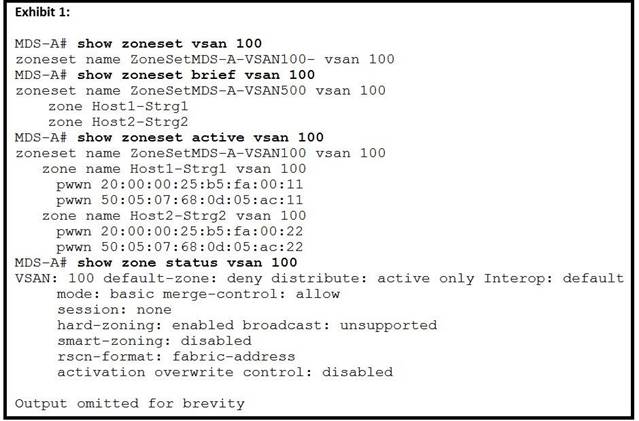

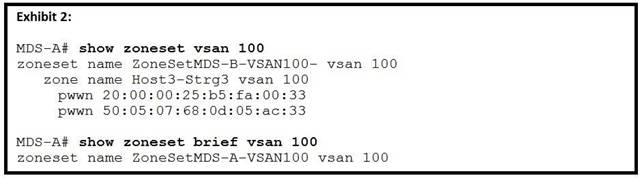

Refer to the exhibits.


A storage network engineer activates a zoneset on MDS-A and verifies the successful activation (Exhibit 1). The engineer is then notified that there is a SAN outage (Exhibit 2) What is the cause of the outage?

• A. Another network engineer activated zoneset ZoneSetMDS-B-VSAN100 on MDS-A.
• B. Another network engineer issued the zone mode enhanced vsan 100 command on another switch in the fabric.
• C. Another network engineer activated the zoneset ZoneSetMDS-B-VSAN100 command on another switch in the fabric.
• D. Another network engineer issued the zone default-zone permit vsan 100 command on another switch in the fabric.

Answer: D

NEW QUESTION 24
Which component is initially responsible for loading the kickstart image on Cisco MDS Switches?

• A. ROMMON
• B. BIOS
• C. NX-OS
• D. BASH

Answer: C

NEW QUESTION 25
A storage network engineer is implementing SAN telemetry for a SAN infrastructure using Cisco DCNM for SAN. Which command is used to check the session status for telemetry operation?

• A. show telemetry pipeline stats
• B. show telemetry transport
• C. show telemetry control stats
• D. show analytics system-load

Answer: B
