NEW QUESTION 1
An engineer discovers that an NPV/NPIV uplink experiences a heavy load and plans to add more uplinks. Which statement about what occurs when the new uplinks are added is true?

• A. Only new connections use the new uplinks automatically.
• B. Paths must be defined before new connections can use the new uplinks.
• C. All connections must be reset before the new uplinks can be used.
• D. New and existing connections use the new uplinks automatically.

Answer: D

NEW QUESTION 2
An engineer is troubleshooting a failed DCBX exchange between a server and a Cisco Nexus switch. Which action allows DCBX to successfully negotiate?

• A. Enable ETS
• B. Enable PFC.
• C. Enable Cisco Discovery Protocol.
• D. Enable LLDP.

Answer: D

NEW QUESTION 3
DRAG DROP

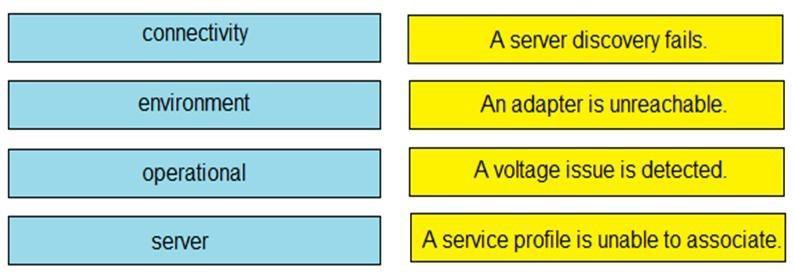

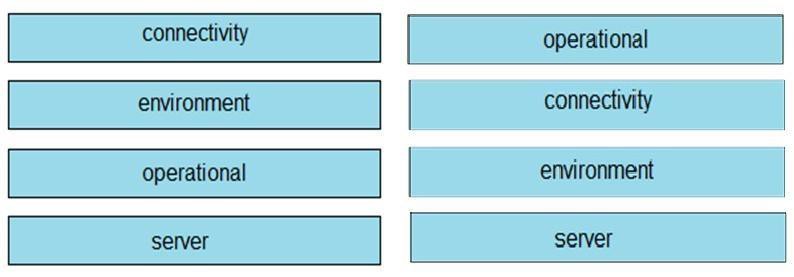

Drag and drop the Cisco UCS SNMP fault types from the left onto the correct issues on the right.
Select and Place:

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:

NEW QUESTION 4

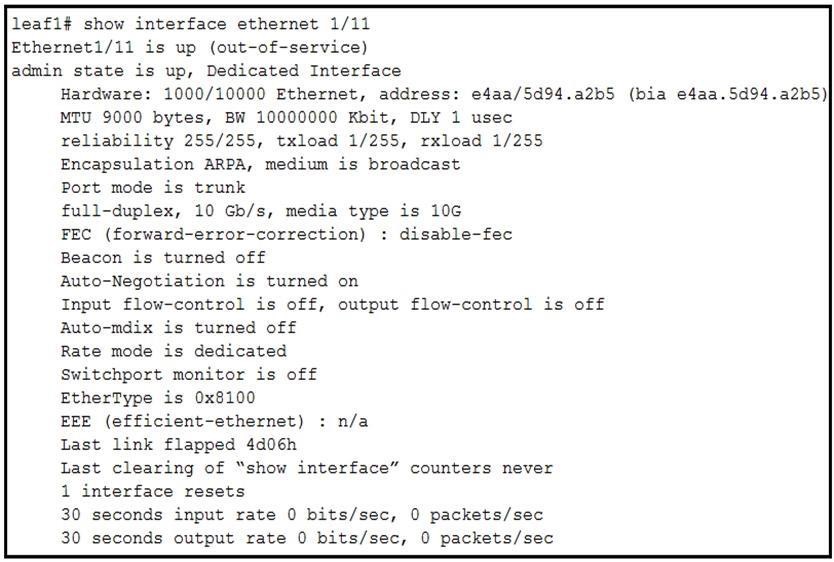

Refer to the exhibit. An engineer is performing a health check on ACI. Which statement about interface Ethernet 1/11 is true?

• A. The interface is working correctly and fully operational, but it is not in use.
• B. The interface policy is misconfigured.
• C. “out-of-service” is the default interface status in ACI.
• D. “out-of-service” indicates that no service graph is in use for this interface.

Answer: B

NEW QUESTION 5
A vPC Type-1 inconsistency between two vPC peers in a VXLAN EVPN setup is discovered. Which two actions need to be attempted to resolve the issue? (Choose two.)

• A. Configure the NVE interfaces to be Up on both switches.
• B. Set a different distributed gateway virtual MAC address.
• C. Set a different secondary IP addresses on NVE source-interface.
• D. Configure the same VNI to multicast group maping.
• E. Set a different primary IP addresses on NVE source-interface.

Answer: AD

NEW QUESTION 6
An IOM fails during a firmware upgrade and is unresponsive. Which action recovers the module?

• A. Restore UCSM configuration from backup.
• B. Roll back to the previous firmware.
• C. Use AutoInstall to reinstall the firmware.
• D. From the peer IOM, reset the faulty module.

Answer: B

NEW QUESTION 7
A server fails to boot from the operating system after a RAID1 cluster migration. The RAID remains in an inactive state during and after a service profile association. Which action resolves the issue?

• A. Configure the SAN boot target in the service profile.
• B. Configure the SAN boot target to any configuration mode.
• C. Use a predefined local disk configuration policy.
• D. Remove the local disk configuration policy.

Answer: C

NEW QUESTION 8
Cisco Unified Computing System Manager raises a critical error message that indicates that the system has overlapping Ethernet and FCoE VLANs. All of the Ethernet traffic on the overlapping VLANs drops. Which action resolves the issue?

• A. Modify the VLAN assignment to vNICs.
• B. Change the PIN groups on the vHBAs.
• C. Modify the FCoE VLAN.
• D. Set the FCoE VLAN as the native VLAN on server uplinks.

Answer: A

NEW QUESTION 9
DRAG DROP
An engineer is troubleshooting issues in Cisco UCS Director. Drag and drop the possible causes from the left onto the correct issues on the right.
Select and Place:

• A. Mastered
• B. Not Mastered

Answer: A

NEW QUESTION 10
A network administrator attempts to install an application in the Cisco NX-OS Guest shell and receives an error that there is not enough space on the disk. Which command must the administrator run to increase the disk space available in the Guest shell?

• A. guestshell growdisk rootfs [size-in-MB]
• B. guestshell pvextend rootfs [size-in-MB]
• C. guestshell resize rootfs [size-in-MB]
• D. guestshell resize2fs rootfs [size-in-MB]

Answer: C

NEW QUESTION 11

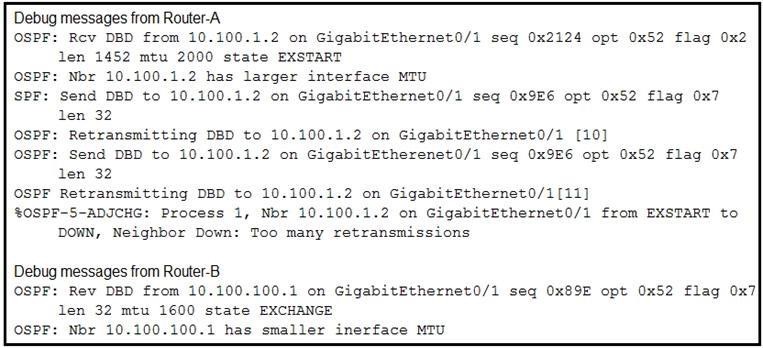

Refer to the exhibit. An OSPF adjacency between Router-A and Router-B cannot reach the FULL state. Which action resolves the issue?

• A. Adjust the MTU on Router-A to 1600.
• B. Disable the check of the MTU value.
• C. Set the OSPF media type to point-to-point.
• D. Adjust the MTU on Router-B to 1604.

Answer: B

NEW QUESTION 12
A Fibre Channel interface on a Cisco Nexus 5000 Series Switch receives bit errors, and the switch disables the interface. A temporary workaround must be implemented before the root cause is identified. Which action does an engineer take to prevent this issue from reoccurring?

• A. Verify that the SFPs are supported.
• B. Change the SFP to operate at 4 Gbps instead of 2 Gbps.
• C. Run the shutdown and then no shutdown command on the interface.
• D. Run the switchport ignore bit-errors command on the interface.

Answer: D

NEW QUESTION 13
A customer configures HSRP between two data centers that are interconnected with OTV. The configuration succeeds, but traffic between two ESXi virtual hosts on the same site is routed suboptimally through the OTV overlay. Which two actions optimize the traffic? (Choose two.)

• A. Disable first-hop redundancy.
• B. Filter HSRP traffic by using a Layer 3 VACL on the OTV edge devices.
• C. Filter HSRP by using a Layer 2 MAC-list on the ESXi vSwitch.
• D. Filter HSRP traffic by using a Layer 3 VACL on the ESXi vSwitch.
• E. Filter HSRP by using a Layer 2 MAC-list on the OTV edge devices.

Answer: AB

NEW QUESTION 14

Refer to the exhibit. vPC between switch1 and switch2 is not working. Which two actions are needed to fix the problem? (Choose two.)

• A. Match vPC domain ID between the two devices.
• B. Configure IP address on the interface.
• C. Activate VLANs on the vPC.
• D. Configure vPC peer link and vPC peer keepalive correctly.
• E. Configure one of the switches as primary for the vPC.

Answer: AC

NEW QUESTION 15

Refer to the exhibit. The EEM script fails to send an SNMP trap when a user attempts to enter configuration mode. Which configuration is missing from the script?

• A. event statement
• B. event-default action statement
• C. policy-default action statement
• D. IP address of the SNMP server

Answer: D

NEW QUESTION 16
A mission-critical server is connected to site A. Connectivity to this server is lost from site B because the MAC route is missing in the OTV VDC of the Nexus 7000 in site B due to MAC aging. Which action allows the flooding of the unknown unicast MAC on the Nexus 7000 in the OTV VDC?

• A. Use route-map to advertise this MAC statically and redistribute with ISIS.
• B. Unknown unicast flooding is not allowed.
• C. Use the otv flood mac <> command to selectively flood traffic for a given MAC.
• D. Use the otv isis bfd <> command to configure BFD protocol.

Answer: B

NEW QUESTION 17

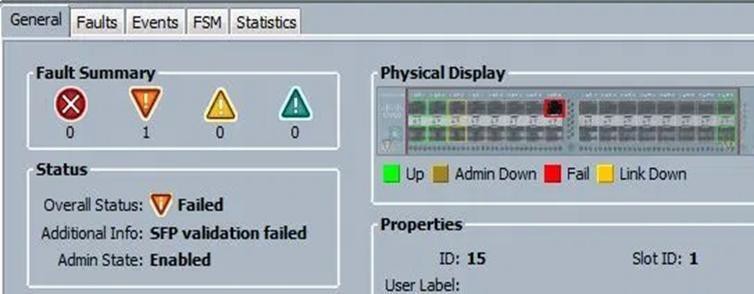

Refer to the exhibit. When an engineer inserts 8-Gb FC SFP port 15 on a Cisco UCS Fabric Interconnect, the port fails. What is a possible cause of the issue?

• A. Port 15 is configured as an Ethernet port.
• B. Port 15 is configured for 4-Gb FC.
• C. Port 15 is missing a license.
• D. The polarity of the fiber cable is reversed.

Answer: B

NEW QUESTION 18
DRAG DROP

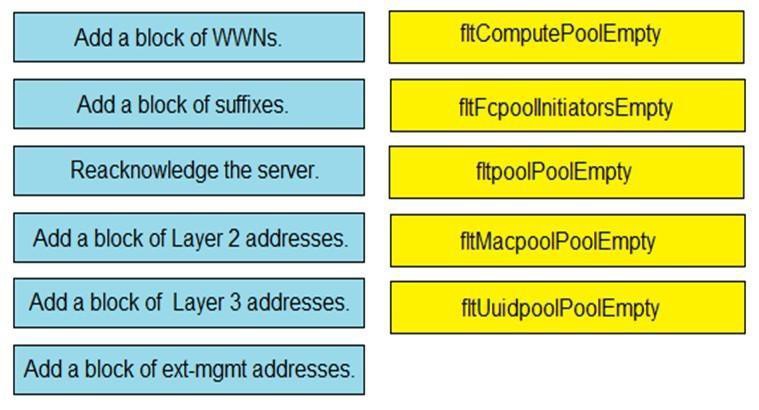

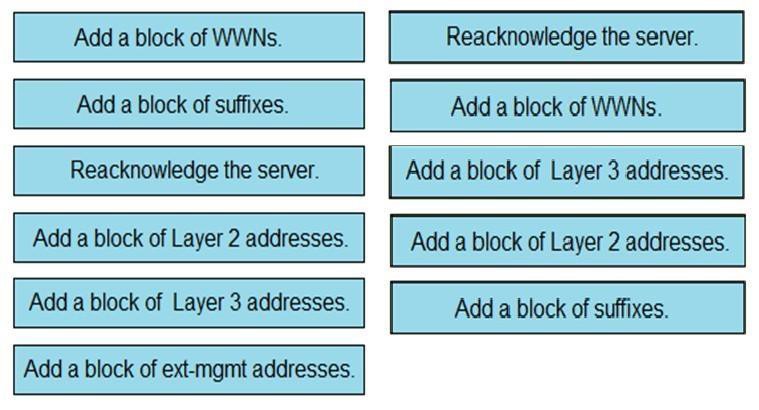

Drag and drop the actions from the left onto the faults that they resolve on the right. Not all options are used.
Select and Place:

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:

NEW QUESTION 19
A user reports that they cannot reach from a UCS server to an FC Storage array. Which command is used to test communication between an FCF and a target?

• A. fcroute
• B. traceroute
• C. fcping
• D. ping

Answer: C

NEW QUESTION 20
Refer to the exhibit. A network engineer configures an EEM script to get a syslog notification after a configuration change. This message appears when the engineer must make a new configuration to this switch. Which configuration did the engineer neglect to apply in the script for it to function properly?

• A. event cli match ‘configure terminal’
• B. event policy-default count 1 time 100
• C. event syslog occurs 10
• D. action 2.0 event-default

Answer: D

NEW QUESTION 21
A server administrator attempts to change the Cisco IMC KVM certificate to one signed by a private CA, but the certificate is not being accepted. What can cause this process to fail?

• A. using a certificate with a password-protected private key
• B. RSA encryption being used in the generation of the certificate.
• C. AES encryption being used in the generation of the certificate.
• D. public IP addres of the Cisco IMC not being included in the SAN.

Answer: A

NEW QUESTION 22

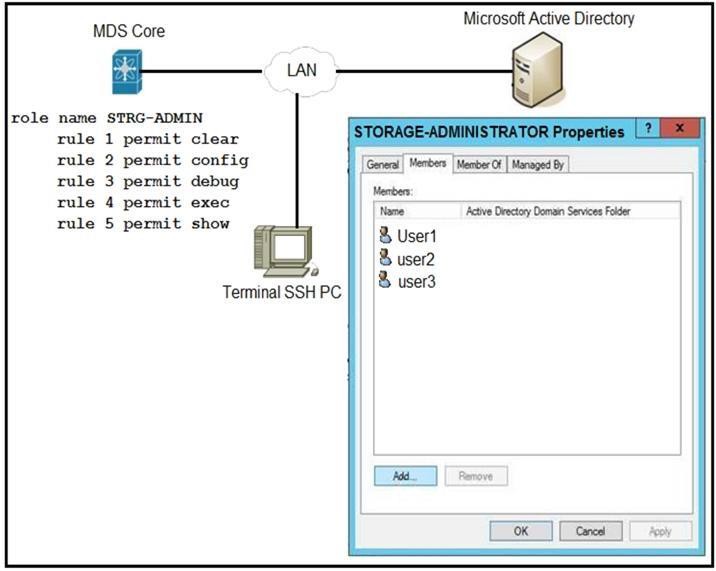

Refer to the exhibit. An engineer is troubleshooting why user1, user2, and user3 from group STORAGE-ADMINISTRATOR in Microsoft Active Directory cannot log in to the Cisco MDS SSH CLI. Which action resolves the issue?

• A. Configure the role name to match the group name on Microsoft Active Directory.
• B. Include specific users into MDS role configuration.
• C. Configure SSH logins on Cisco MDS switch.
• D. Integrate Cisco MDS with Microsoft Active Directory.

Answer: A

NEW QUESTION 23

Refer to the exhibit. After the configuration is performed, guestshell continues to use 2%CPU. Which action resolves the issue?

• A. Resync the database
• B. Recreate the guestshell
• C. Reboot the guestshell
• D. Reboot the switch

Answer: C

NEW QUESTION 24
An engineer attempts to register Cisco UCS Manager to Cisco UCS Central, but the registration fails. The engineer can ping Cisco UCS Central from UCS Manager. Which two actions must the engineer attempt to resolve the problem? (Choose two.)

• A. Synchronize the date and time to NTP for Cisco UCS Central and the Cisco UCS domains.
• B. Apply the UCS Central license to UCS Central.
• C. Place Cisco UCS Manager on the same subnet as Cisco UCS Central.
• D. Allow port 443 between Cisco UCS Manager and Cisco UCS Central.
• E. Allow port 9443 between Cisco UCS Manager and Cisco UCS Central.

Answer: AD
