NEW QUESTION 1
For high availability within iSCSI, connections should be attached using what?

• A. Different subnets
• B. Flow control
• C. Twinax cables
• D. Jumbo frames

Answer: A

NEW QUESTION 2
What is the first step to configure asynchronous replication for a storage resource?

• A. Set up management channel
• B. Configure replication session
• C. Verify replication connection
• D. Create replication interfaces

Answer: D

NEW QUESTION 3
What is a benefit of Dell EMC Unity XT Series dynamic pools?

• A. Reduced time to rebuild a failed drive
• B. Improved access to data resident on the drive tiers
• C. Protects written data from deletion or modification
• D. Enables throughput and bandwidth throttling

Answer: A

Explanation:
A pool type introduced in Dell EMC Unity OE version 4.2toprovide space to storage resources. Dynamic pools allow for flexible deployment models, and reduced rebuild times and flash wear compared to Traditional pools. A dynamic pool is created when creating a pool in Unisphere in Dell EMC Unity OE version 4.2 and
later. Dynamic pools are only supported on Dell EMC Unity all-flash systems.

NEW QUESTION 4

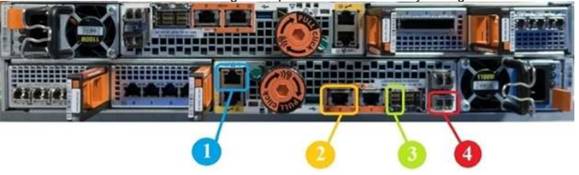

Refer to the exhibit.

Where is the management port located on the Unity Storage Processor?

• A. 1
• B. 2
• C. 3
• D. 4

Answer: C

NEW QUESTION 5
A Unity 400 system has Data at Rest Encryption licensed and enabled. Which operation(s) must be performed from the Unisphere Settings window to ensure the system is still operational after SP replacements?

• A. Download Audit Log
• B. Download Checksum
• C. Backup Keystore File
• D. Download Audit Log and Checksum

Answer: C

Explanation:
The keystore is tied to the storage processors, so care must be taken when performing service operations in order to preserve the encryption keys. In the event that the chassis and both storage processors need to be replaced, both storage processors should not be replaced at the same time. Instead, the chassis replacement should be followed while retaining one SP until the array is back online before replacing the second SP. In the case that storage processors have already been replaced at the same time and the keystore was lost, the keystore may be restored from an external backup.

NEW QUESTION 6
On which platform(s) is FAST Cache available?

• A. All Flash Unity systems only
• B. Physical Unity systems only
• C. Unity hybrid systems only
• D. Physical and UnityVSA systems

Answer: C

Explanation:
References:
https://www.emc.com/collateral/white-papers/h15084-dell-emc-unity-introduction-to-the-platform.pdf

NEW QUESTION 7
Which disk format is recommended for Dell EMC Unity’s OVA?

• A. Thick Provision Lazy Zeroed
• B. raw
• C. Thick Provision Eager Zeroed
• D. Thin Provision

Answer: C

NEW QUESTION 8
Which VVol object stores .vmx files, logs, and NVRAM?

• A. Config
• B. Memory
• C. Data
• D. Swap

Answer: A

NEW QUESTION 9
During the configuration of ESRS, how is the Customer Contact Data verified?

• A. Access code sent through email to the customer
• B. Step taken during the ESRS Network check
• C. Step taken by the ESRS Policy Manager
• D. Step taken during the readiness check for ESRS

Answer: A

NEW QUESTION 10
How is a Local LUN Move configured?

• A. First select the LUN, then select the Pool to move the LUN into, and finally choose the Move operation.
• B. First select the Pool to move the LUN into, then choose the Move operation, and finally select a LUN.
• C. First choose the Move operation, then select a LUN, and finally select the Pool to move the LUN into.
• D. First select a LUN, then choose the Move operation, and finally select the Pool to move the LUN into

Answer: D

Explanation:
References:
https://www.dellemc.com/sr-me/documentation/unity-family/unity-p-config-luns/02-configuring-lun-move.htm

NEW QUESTION 11
On which storage objects is data Reduction supported?

• A. Thick LUNs and VVols
• B. VMFS datastores and VVols
• C. Thin LUNs and thin VMFS datastores
• D. Thin LUNs and thick LUNs

Answer: D

NEW QUESTION 12
An administrator is preparing to configure logging to a remote host. If they use the Unity default values, which port needs to be open for the system to transfer the log information?

• A. 443
• B. 514
• C. 546
• D. 8443

Answer: A

Explanation:
References: https://www.emc.com/collateral/TechnicalDocument/docu69327.pdf

NEW QUESTION 13
A Storage administrator needs to expand their FAST Cache. The current configuration consists of four 200 GB SAS Flash 2 drives.
What can be used to expand the FAST Cache?

• A. Two 200 GB SAS Flash 2 drives
• B. Two 400 GB SAS Flash 2 drives
• C. Two 200 GB SAS Flash 3 drives
• D. Two 400 GB SAS Flash 3 drives

Answer: A

NEW QUESTION 14
When can a LUN be defined as thin or thick?

• A. Any time after the LUN has been created
• B. Only when creating the LUN
• C. Only when enabling data reduction on the LUN
• D. Only when adding host access to the LUN

Answer: B

NEW QUESTION 15
When defining which resources on the destination system the replicated item will use for an asynchronous session, which settings must be provided?

• A. Replication Mode, RPO, and Replicate To
• B. Name, Pool, and Storage Provisioning
• C. Ethernet Port, Subnet/Prefix Length, and Gateway
• D. Management IP Address, User Name, and Password

Answer: B

Explanation:
Create a replication session
Ensure that you have first created relevant replication interfaces and connections, and then you need the name, pool, storage provisioning, and tiering policy you want to use for the destination storage resource. The system will automatically created a destination storage resource as part of this process.
References: https://www.emc.com/dam/uwaem/documentation/unity-p-replication-config.pdf (page 23)

NEW QUESTION 16
Observing the SPE Fault LED during initial power up, what colors and time duration does the SPE use to indicate that it is ready for initialization?

• A. Amber for 1 second, then blue for 3 seconds
• B. Blue for 1 second, then green for 3 seconds
• C. Amber for 1 second, then green for 2 seconds
• D. Amber for 3 seconds, then blue for 1 second

Answer: D

NEW QUESTION 17
Which FAST VP operation can be performed from the System Settings window?

• A. Modify data relocation schedule
• B. Delete snapshots from the tier
• C. Cancel data relocation operations
• D. Manually start data relocation

Answer: A

NEW QUESTION 18
A High Endurance SSD is limited to how many writes per day?

• A. 1
• B. 10
• C. 25
• D. 30

Answer: B
