NEW QUESTION 1
What must the sender do when it receives a window size of 0 from the receiver?

• A. Stop transmittin
• B. Terminate the TCP sessio
• C. Send the next segmen
• D. Retransmit the previous segmen

Answer: A

NEW QUESTION 2
In regards to the Alcatel-Lucent 7750 SR-12 router, how many of the front access card slots are dedicated for Control Processors?

• A. 1
• B. 2
• C. 7
• D. 10

Answer: B

NEW QUESTION 3
Public IP addresses are globally coordinated by which organization?

• A. Network Solutions INC
• B. IANA
• C. IETF
• D. ITU-T
• E. IEEE

Answer: B

NEW QUESTION 4
Which of the following is NOT an example of a Layer 2 protocol?

• A. POS
• B. IP
• C. ATM
• D. Frame Relay
• E. Ethernet

Answer: B

NEW QUESTION 5
Which of the following best describes a repeater?

• A. A passive device simply used to connect two or more cable
• B. It does not generate or amplify any signal
• C. A device that receives and retransmits a signal out its ports but does not do any Layer 2 analysis of the dat
• D. A device that receives a signal and based on the Layer 2 destination address, makes a decision on which ports the signal should be retransmitte
• E. A device that receives a signal and based on the Layer 3 destination address makes a decision on which ports the signal should be retransmitte

Answer: B

NEW QUESTION 6
Which of the following are important to consider when designing IPv4 subnets? (Choose 3)

• A. The number of subnetworks currently require
• B. The version of the Ethernet used by each segmen
• C. Future network growth requirement
• D. The number of hosts each subnetwork will suppor
• E. The class of the IP address assigned to an organizatio

Answer: ACD

NEW QUESTION 7
What information is used to separate VLANs on a VLAN trunk that connects multiple VLANs?

• A. VLAN ta
• B. IP Heade
• C. FC
• D. Priority Valu

Answer: A

NEW QUESTION 8
How many of the front access card slots of the Alcatel-Lucent 7750 SR-12 router are dedicated for redundant common equipment?

• A. 1
• B. 2
• C. 7
• D. 10

Answer: B

NEW QUESTION 9
Choose two true statements that characterize Distance Vector Routing?

• A. Routers send a copy of their routing table to their neighbors periodicall
• B. Routers flood link information throughout the entire are
• C. Network converges quickly (within several seconds) after a topology chang
• D. Routers do not have precise knowledge of the entire network topolog

Answer: AD

NEW QUESTION 10

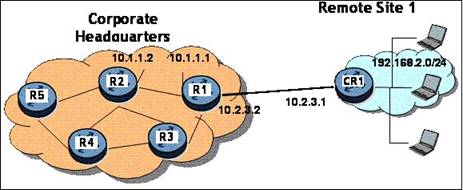

Based on the network diagram (click on the exhibit),

what is the command to use on R1 to setup a static route to the network on CR1

• A. config router static-route 192.168.2.0/24 next-hop 10.2.3.2
• B. config router static-route 10.2.3.1 next-hop 192.168.2.0
• C. config router static-route 192.168.2.0/24 next-hop 10.2.3.1
• D. config router static-route 10.2.3.2 next-hop 192.168.2.0

Answer: C

NEW QUESTION 11

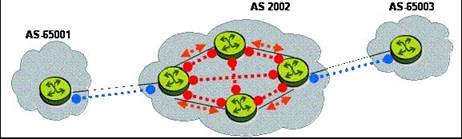

Which is the public AS in the diagram?

• A. 65001
• B. 65003
• C. 2002
• D. All of the abov
• E. None of the abov

Answer: C

NEW QUESTION 12
What must occur for a LAG to become operational?

• A. There must be multiple ports assigned to the LA
• B. All ports in the LAG must be configured with the same characteristic
• C. Auto-negotiation must be enabled on all ports in the LA
• D. All of the abov

Answer: B

NEW QUESTION 13
Why does UDP have less overhead than TCP?

• A. UDP has less overhead because it is only used for transmission of small amounts of dat
• B. UDP has less overhead then TCP because there is no checksum field in UD
• C. UDP overhead is the same as TCP because it uses the same fields in the heade
• D. UDP has less overhead because there is no requirement for acknowledgment or retransmissio

Answer: D

NEW QUESTION 14
Which compact flash on a Control/Switch processor of an Alcatel-Lucent 7750 router stores the runtime image and running configuration?

• A. CF 1
• B. CF 2
• C. CF 3
• D. Both A and B

Answer: C

NEW QUESTION 15
Which of the following is a File command in the File System context of the Command Line Interface (CLI)?

• A. time-display
• B. help
• C. type
• D. terminal

Answer: C

NEW QUESTION 16
If a customer requires a point-to-point layer 2 VPN service between two locations which VPN service would be typically suited for this customer?

• A. Virtual Private Wire Service .
• B. Virtual Private LAN Servic
• C. Virtual Private Routed Network
• D. Virtual Private Dark Fiber Servic

Answer: A

NEW QUESTION 17
Which statement best describes a SAP?

• A. The Service ATM Point is used for ATM connections to a P
• B. The Service Access Point is defined on the PE device and is the customers access to the servic
• C. The Service Access Point is defined on the P device and is the customers access to the servic
• D. The Service Access Point is defined on the CE device and is the customers access to the servic

Answer: B

NEW QUESTION 18
What are the tasks of a Routing Table Manager (RTM)? (Choose 2)

• A. To select the best route from among multiple routing protocol
• B. To select the best route using the metric as criteri
• C. To send its best route to all its directly connected neighbor
• D. To install its best route in the routing tabl

Answer: AD

NEW QUESTION 19
From the CE perspective, how does a VPLS operate?

• A. A VPLS operates as if 2 sites are directly connected by a single cabl
• B. A VPLS operates as if multiple sites are connected through a single switched LA
• C. A VPLS operates as ifmultiplesites are connected through a single route
• D. A VPLSoperatesas if multiple sites are connected through a series of private point-to-point routed connection

Answer: B

NEW QUESTION 20
Which of the following information can be seen within the FILE context of the SR 7x50? (Choose 2)

• A. File sizes
• B. Port statistics
• C. Log-id 100 files
• D. TiMOS image files

Answer: AD
