NEW QUESTION 1
An engineer is implementing a Cisco ACI data center network that includes Cisco Nexus 2000 Series 10G fabric extenders. Which physical topology is supported?
A.

B.

C.

• A.

Answer: D

NEW QUESTION 2
Which tenant is used when configuring in-band management IP addresses for Cisco APICs, leaf nodes, and spine nodes?

• A. default
• B. infra
• C. common
• D. mgmt

Answer: D

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/apic/sw/kb/b_KB_Configuring_Static_Management_Access.html#concept_CFF63FEBE947424291B0F10E6F23DA7D

NEW QUESTION 3
Which type of profile needs to be created to deploy an access port policy group?

• A. attachable entity
• B. Pod
• C. module
• D. leaf interface

Answer: A

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/apic/sw/1-x/Operating_ACI/guide/b_Cisco_Operating_ACI/b_Cisco_Operating_ACI_chapter_0110.html

NEW QUESTION 4
Which statement about ACI syslog is true?

• A. Notifications for different scopes of syslog objects can be sent only to one destination.
• B. Syslog messages are sent to the destination through the spine.
• C. All syslog messages are sent to the destination through APIC.
• D. Switches send syslog messages directly to the destinations.

Answer: A

Explanation:
Reference: https://www.ciscolive.com/c/dam/r/ciscolive/us/docs/2021/pdf/BRKACI-2303.pdf

NEW QUESTION 5
An engineer is creating a configuration import policy that must terminate if the imported configuration is incompatible with the existing system. Which import mode achieves this result?

• A. merge
• B. atomic
• C. best effort
• D. replace

Answer: B

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/apic/sw/4-x/aci-fundamentals/Cisco-ACI-Fundamentals-401/Cisco-ACI-Fundamentals-401_chapter_01011.html

NEW QUESTION 6
A Solutions Architect is asked to design two data centers based on Cisco ACI technology that can extend L2/L3, VXLAN, and network policy across locations. ACI Multi-Pod has been selected. Which two requirements must be considered in this design? (Choose two.)

• A. ACI underlay protocols, i.
• B. COOP, IS-IS and MP-BGP, spans across pod
• C. Create QoS policies to make sure those protocols have higher priority.
• D. A single APIC Cluster is required in a Multi-Pod desig
• E. It is important to place the APIC Controllers in different locations in order to maximize redundancy and reliability.
• F. ACI Multi-Pod requires an IP Network supporting PIM-Bidir.
• G. ACI Multi-Pod does not support Firewall Clusters across Pod
• H. Firewall Clusters should always be local.
• I. Multi-Pod requires multiple APIC Controller Clusters, one per po
• J. Make sure those clusters can communicate to each other through a highly available connection.

Answer: AE

NEW QUESTION 7
DRAG DROP
Drag and drop the Cisco ACI filter entry options from the left onto the correct categories on the right indicating what are required or optional parameters.

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/apic/sw/1-x/Operating_ACI/guide/b_Cisco_Operating_ACI/b_Cisco_Operating_ACI_chapter_01000.html

NEW QUESTION 8
An engineer is extending EPG connectivity to an external network. The external network houses the Layer 3 gateway and other end hosts. Which ACI bridge domain configuration should be used?

• A. Forwarding: CustomL2 Unknown Unicast: Hardware Proxy L3 Unknown Multicast Flooding: Flood Multi Destination Flooding: Flood in BD ARP Flooding: Enabled
• B. Forwarding: Custom L2 Unknown Unicast: FloodL3 Unknown Multicast Flooding: Flood Multi Destination Flooding: Flood in BD ARP Flooding: Enabled
• C. Forwarding: CustomL2 Unknown Unicast: Hardware Proxy L3 Unknown Multicast Flooding: Flood Multi Destination Flooding: Flood in BD ARP Flooding: Disabled
• D. Forwarding: Custom L2 Unknown Unicast: FloodL3 Unknown Multicast Flooding: Flood Multi Destination Flooding: Flood in BD ARP Flooding: Disabled

Answer: D

NEW QUESTION 9
DRAG DROP
Drag and drop the Cisco ACI Layer 4 to Layer 7 service insertion terms on the left to the correct descriptions on the right.

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:

NEW QUESTION 10
Which table holds IP address, MAC address and VXLAN/VLAN information on a Cisco ACI leaf?

• A. endpoint
• B. adjacency
• C. RIB
• D. ARP

Answer: A

Explanation:
Reference: https://www.cisco.com/c/en/us/solutions/collateral/data-center-virtualization/application-centric-infrastructure/white-paper-c11-739989.html

NEW QUESTION 11
Which two protocols support accessing backup files on a remote location from the APIC? (Choose two.)

• A. TFTP
• B. FTP
• C. SFTP
• D. SMB
• E. HTTPS

Answer: BC

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/apic/sw/1-x/troubleshooting/b_APIC_Troubleshooting/b_APIC_Troubleshooting_appendix_010011.html

NEW QUESTION 12
An engineer is implementing Cisco ACI at a large platform-as-a-service provider using APIC controllers, 9396PX leaf switches, and 9336PQ spine switches. The leaf switch ports are configured as IEEE 802.1p ports. Where does the traffic exit from the EPG in IEEE 802.1p mode in this configuration?

• A. from leaf ports tagged as VLAN 0
• B. from leaf ports untagged
• C. from leaf ports tagged as VLAN 4094
• D. from leaf ports tagged as VLAN 1

Answer: A

NEW QUESTION 13
Which statement regarding ACI Multi-Pod and TEP pool is true?

• A. The IP addresses used in the IPN network can overlap TEP pool of the APIC.
• B. A different TEP pool must be assigned to each Pod.
• C. The Pod1 TEP pool must be split and a portion of the TEP pool allocated to each Pod.
• D. The same TEP pool is used in all Pods.

Answer: B

Explanation:
Reference: https://www.cisco.com/c/en/us/solutions/collateral/data-center-virtualization/application-centric-infrastructure/white-paper-c11-739714.html

NEW QUESTION 14
Which components must be configured for the BGP Route Reflector policy to take effect?

• A. spine fabric interface overrides and profiles
• B. access policies and profiles
• C. pod policy groups and profiles
• D. leaf fabric interface overrides and profiles

Answer: A

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/apic/sw/4-x/L3-configuration/Cisco-APIC-Layer-3-Networking-Configuration-Guide-401/Cisco-APIC-Layer-3-Networking-Configuration-Guide-401_chapter_01.html

NEW QUESTION 15
Where is the COOP database located?

• A. leaf
• B. spine
• C. APIC
• D. endpoint

Answer: B

Explanation:
Reference: https://www.cisco.com/c/en/us/solutions/collateral/data-center-virtualization/application-centric-infrastructure/white-paper-c11-739989.html

NEW QUESTION 16
Which setting prevents the learning of Endpoint IP addresses whose subnet does not match the bridge domain subnet?

• A. “Limit IP learning to network” setting within the bridge domain.
• B. “Limit IP learning to subnet” setting within the EPG.
• C. “Limit IP learning to network” setting within the EPG.
• D. “Limit IP learning to subnet” setting within the bridge domain.

Answer: D

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/apic/sw/2-x/L2_config/b_Cisco_APIC_Layer_2_Configuration_Guide/b_Cisco_APIC_Layer_2_Configuration_Guide_chapter_010.html

NEW QUESTION 17
When Cisco ACI connects to an outside Layers 2 network, where does the ACI fabric flood the STP BPDU frame?

• A. within the bridge domain
• B. within the APIC
• C. within the access encap VLAN
• D. between all the spine and leaf switches

Answer: A

Explanation:
Reference: https://www.cisco.com/c/en/us/solutions/collateral/data-center-virtualization/application-centric-infrastructure/white-paper-c07-732033.html#_Toc395143571

NEW QUESTION 18

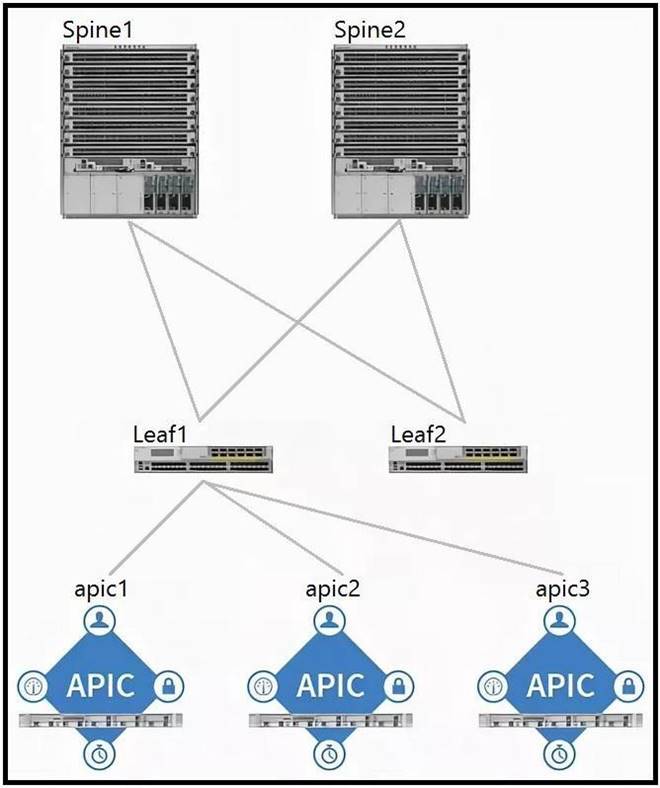

Refer to the exhibit.

Which two components should be configured as route reflectors in the ACI fabric? (Choose two.)

• A. Spine1
• B. apic1
• C. Spine2
• D. Leaf1
• E. Leaf2
• F. apic2

Answer: AC

NEW QUESTION 19
Which protocol does ACI use to securely sane the configuration in a remote location?

• A. SCP
• B. HTTPS
• C. TFTP
• D. FTP

Answer: A

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/apic/sw/kb/b_KB_Using_Import_Export_to_Recover_Config_States.html

NEW QUESTION 20
An engineer is implementing a connection that represents an external bridged network. Which two configurations are used? (Choose two.)

• A. Layer 2 remote fabric
• B. Layer 2 outside
• C. Layers 2 internal
• D. Static path binding
• E. VXLAN outside

Answer: AB

NEW QUESTION 21
A data center administrator is upgrading an ACI fabric. There are 3 APIC controllers in the fabric and all the servers are dual-homed to pairs of leaf switches configured in VPC mode. How should the fabric be upgraded to minimize possible traffic impact during the upgrade?

• A. * 1. Create two maintenance groups for the APIC controllers: VPC left and VPC right.* 2. Upgrade the first group of controllers.* 3. Upgrade the second group of controllers.* 4. Upgrade the leaf switches.
• B. * 1. Create two maintenance groups for APIC controllers: VPC left and VPC right.* 2. Upgrade the leaf switches.* 3. Upgrade the first group of controllers.* 4. Upgrade the second group of controllers.
• C. * 1. Create two maintenance groups for the leaf switches: VPC left and VPC right.* 2. Upgrade the APIC controllers.* 3. Upgrade the first group of leaf switches.* 4. Upgrade the second group of leaf switches.
• D. * 1. Create two maintenance groups for the leaf switches: VPC left and VPC right.* 2. Upgrade the first group of switches.* 3. Upgrade the second group of switches.* 4. Upgrade the APIC controllers.

Answer: D

NEW QUESTION 22
What represents the unique identifier of an ACI object?

• A. universal resource identifier (URI)
• B. application programming interface
• C. management information tree
• D. distinguished name

Answer: D

Explanation:
Reference: https://www.slideshare.net/CiscoDevNet/introduction-to-aci-apis

NEW QUESTION 23
A situation causes a fault to be raised on the APIC. The ACI administrator does not want that fault to be raised because it is not directly relevant to the environment. Which action should the administrator take to prevent the fault from appearing?

• A. Under System -> Faults, right-click on the fault and select Acknowledge Fault so that acknowledged faults will immediately disappear.
• B. Create a stats threshold policy with both rising and falling thresholds defined so that the critical severity threshold matches the squelched threshold.
• C. Under System -> Faults, right-click on the fault and select Ignore Fault to create a fault severity assignment policy that hides the fault.
• D. Create a new global health score policy that ignores specific faults as identified by their unique fault code.

Answer: C

NEW QUESTION 24

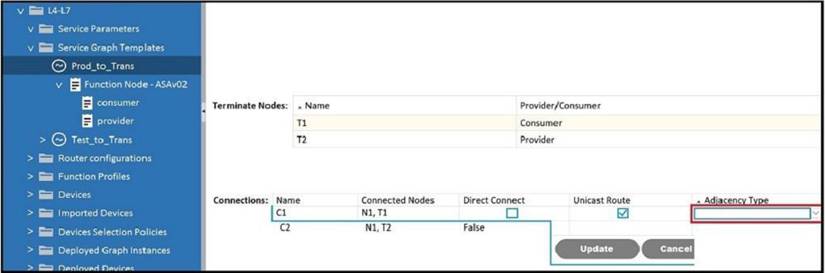

Refer to the exhibit.

Which Adjacency Type value should be set when the client endpoint and the service node interface are in a different subnet?

• A. Routed
• B. Unicast
• C. L3Out
• D. L3

Answer: D

NEW QUESTION 25
Which description regarding the initial APIC cluster discovery process is true?

• A. The APIC uses an internal IP address from a pool to communicate with the nodes.
• B. Every switch is assigned a unique AV by the APIC.
• C. The APIC discovers the IP address of the other APIC controllers by using Cisco Discovery Protocol.
• D. The ACI fabric is discovered starting with the spine switches.

Answer: C

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/apic/sw/1-x/aci-fundamentals/b_ACI-Fundamentals/b_ACI-Fundamentals_chapter_010011.html
