NEW QUESTION 1
Which SD-WAN component is configured to enforce a policy to redirect branch-to-branch traffic toward a network service such as a firewall or IPS?

• A. vBond
• B. vSmart
• C. WAN Edge
• D. Firewall

Answer: B

NEW QUESTION 2
What is a default protocol for control plane connection?

• A. HTTPS
• B. TLS
• C. IPsec
• D. DTLS

Answer: D

NEW QUESTION 3
Which configuration changes the packet loss priority from low to high?

• A.
• B.
• C.
• D.

Answer: B

NEW QUESTION 4
When software is upgraded on a vManage NMS, which two image-adding options store images in a local vManage software repository? (Choose two.)

• A. To be downloaded over an ICMP connection
• B. To be downloaded over a SNMP connection
• C. To be downloaded over a control plane connection
• D. To be downloaded over an out-of-band connection
• E. To be downloaded over a SMTP connection

Answer: CD

NEW QUESTION 5
DRAG DROP
Drag and drop the policies from the left onto the correct policy types on the right.

• A. Mastered
• B. Not Mastered

Answer: A

NEW QUESTION 6
Which pathway under Monitor > Network > Select Device is used to verify service insertion configuration?

• A. System Status
• B. Troubleshooting
• C. Real Time
• D. Events

Answer: B

NEW QUESTION 7
DRAG DROP
Drag and drop the vManage policy configuration procedures from the left onto the correct definitions on the right.
Select and Place:

• A. Mastered
• B. Not Mastered

Answer: A

NEW QUESTION 8
Which scheduling method is configured by default for the eight queues in the cloud vEdge router?

• A. weighted round robin
• B. priority queue
• C. low latency queue
• D. weighted random early detection

Answer: A

NEW QUESTION 9
Which feature template configures OMP?

• A.
• B.
• C.
• D.

Answer: A

NEW QUESTION 10
Which protocol is used to measure loss, latency, jitter, and liveliness of the tunnel between WAN Edge router peers?

• A. OMP
• B. NetFlow
• C. BFD
• D. IP SLA

Answer: C

NEW QUESTION 11
Which hardware component is involved in the Cisco SD-WAN authentication process for ISR platforms?

• A. ZTP
• B. OTPC
• C. SUDI
• D. TPMD

Answer: C

NEW QUESTION 12
What are the two advantages of deploying cloud-based Cisco SD-WAN controllers? (Choose two.)

• A. centralized control and data plane
• B. infrastructure as a service
• C. management of SLA
• D. centralized raid storage of data
• E. distributed authentication policies

Answer: AC

NEW QUESTION 13
A voice packet requires a latency of 50 msec. Which policy is configured to ensure that a voice packet is always sent on the link with less than a 50 msec delay?

• A. localized data
• B. centralized control
• C. localized control
• D. centralized data

Answer: A

NEW QUESTION 14
Which attributes are configured to uniquely identify and represent a TLOC route?

• A. system IP address, link color, and encapsulation
• B. origin, originator, and preference
• C. site ID, tag, and VPN
• D. firewall, IPS, and application optimization

Answer: A

NEW QUESTION 15
Which policy configures an application-aware routing policy under
Configuration > Policies?

• A. Data policy
• B. Centralized policy
• C. Localized policy
• D. Control policy

Answer: A

NEW QUESTION 16
Which two platforms for the Cisco SD-WAN architecture are deployable in a hypervisor on-premises or in IAAS Cloud? (Choose two.)

• A. CSR 1000v
• B. ISR 4431
• C. vEdge 100c
• D. vEdge 2000
• E. vEdge Cloud

Answer: AE

NEW QUESTION 17
An engineer is troubleshooting a vEdge router and identifies a “DCONFAIL – DTLS connection failure” message. What is the problem?

• A. memory issue
• B. certificate mismatch
• C. organization mismatch
• D. connectivity issue

Answer: D

NEW QUESTION 18
Which component of the Cisco SD-WAN control plane architecture should be located in a public Internet address space and facilitates NAT-traversal?

• A. WAN Edge
• B. vSmart
• C. vBond
• D. vManage

Answer: C

NEW QUESTION 19

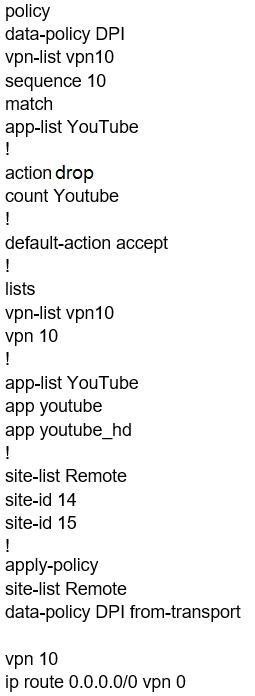

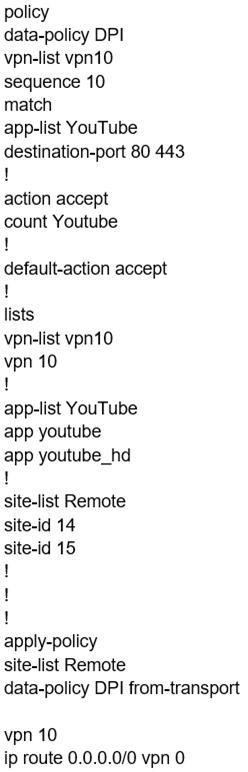

Which configuration allows users to reach YouTube from a local Internet breakout?

• A. B.
• B.

Answer: C

NEW QUESTION 20
When VPNs are grouped to create destination zone, how many zones can a VPN be part of?

• A. two
• B. four
• C. one
• D. three

Answer: C

NEW QUESTION 21
Which platforms are managed by a single vManage dashboard?

• A. ISR4351, ASR1002HX, vEdge2000, vEdge Cloud
• B. ISR4321, ASR1001, Nexus, ENCS
• C. ISR4321, ASR1001, ENCS, ISRv
• D. ISR4351, ASR1009, vEdge2000, CSR1000v

Answer: C

NEW QUESTION 22
Which two image formats are supported for controller codes? (Choose two.)

• A. .nxos
• B. .qcow2
• C. .iso
• D. .ova
• E. .tgz

Answer: BD

NEW QUESTION 23
Which command disables the logging of syslog messages to the local disk?

• A. no system logging disk local
• B. system logging server remote
• C. no system logging disk enable
• D. system logging disk disable

Answer: C
