NEW QUESTION 1
Refer to the exhibits.

Phase-3 tunnels cannot be established between spoke-to-spoke in DMVPN. Which two commands are missing? (Choose two.)

• A. The ip nhrp redirect command is missing on the spoke routers.
• B. The ip nhrp shortcut command is missing on the spoke routers.
• C. The ip nhrp redirect command is missing on the hub router.
• D. The ip nhrp shortcut command is missing on the hub router.
• E. The ip nhrp map command is missing on the hub router.

Answer: BC

NEW QUESTION 2

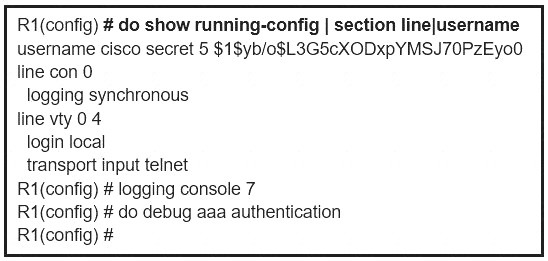

Refer to the exhibit.

An administrator that is connected to the console does not see debug messages when
remote users log in. Which action ensures that debug messages are displayed for remote logins?

• A. Enter the transport input ssh configuration command.
• B. Enter the terminal monitor exec command.
• C. Enter the logging console debugging configuration command.
• D. Enter the aaa new-model configuration command.

Answer: B

NEW QUESTION 3

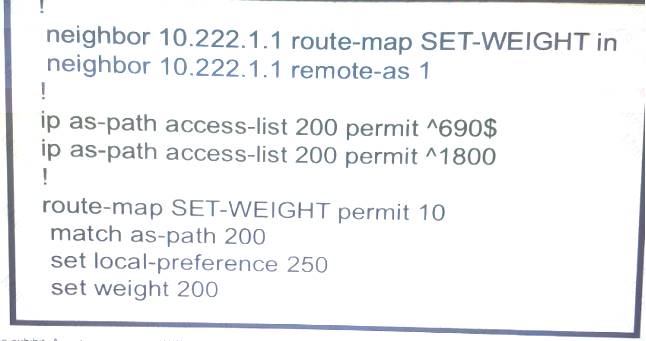

Refer to the exhibit.

A router receiving BGP routing updates from multiple neighbors for routers in AS 690. What is the reason that the router still sends traffic that is destined to AS 690 to a neighbor other than 10.222.1.1?

• A. The local preference value in another neighbor statement is higher than 250.
• B. The local preference value should be set to the same value as the weight in the route map.
• C. The route map is applied in the wrong direction.
• D. The weight value in another statement is higher than 200.

Answer: D

NEW QUESTION 4

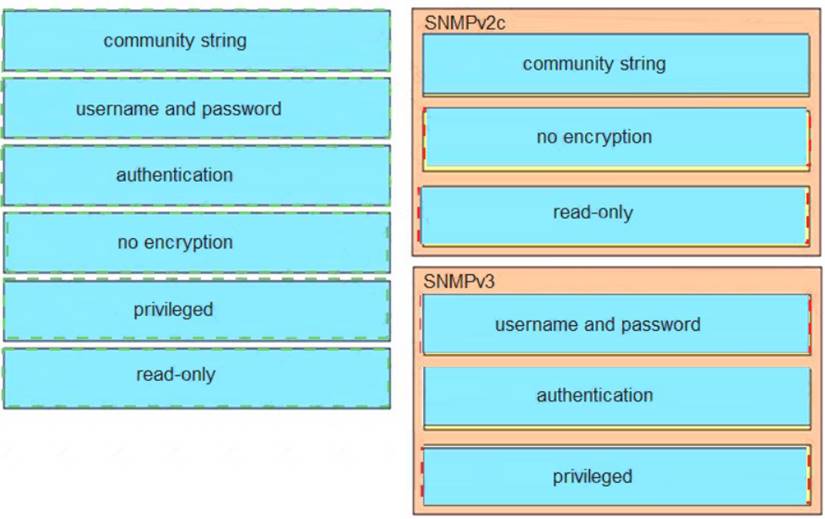

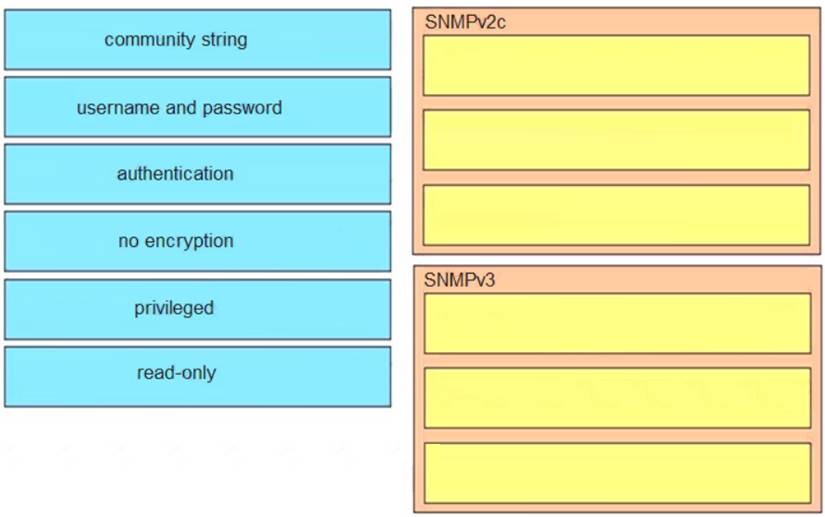

Drag and drop the SNMP attributes in Cisco IOS devices from the left onto the correct SNMPv2c or SNMPV3 categories on the right.

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:

NEW QUESTION 5
A network engineer is investigating a flapping (up/down) interface issue on a core switch that is synchronized to an NTP server. Log output currently does not show the time of the flap. Which command allows the logging on the switch to show the time of the flap according to the clock on the device?

• A. service timestamps log uptime
• B. clock summer-time mst recurring 2 Sunday mar 2:00 1 Sunday nov 2:00
• C. service timestamps log datetime localtime show-timezone
• D. clock calendar-valid

Answer: A

NEW QUESTION 6

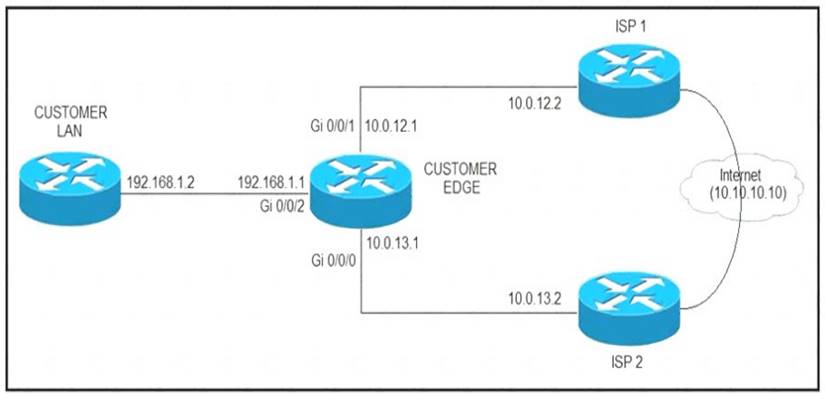

Refer to the exhibit.

ISP 1 and ISP 2 directly connect to the Internet. A customer is tracking both ISP links to
achieve redundancy and cannot see the Cisco IOS IP SLA tracking output on the router console. Which command is missing from the IP SLA configuration?

• A. Start-time 00:00
• B. Start-time 0
• C. Start-time immediately
• D. Start-time now

Answer: D

NEW QUESTION 7
An engineer configured the wrong default gateway for the Cisco DNA Center enterprise interface during the install. Which command must the engineer run to correct the configuration?

• A. sudo maglev-config update
• B. sudo maglev install config update
• C. sudo maglev reinstall
• D. sudo update config install

Answer: A

NEW QUESTION 8
Which statement about route distinguishers in an MPLS network is true?

• A. Route distinguishers allow multiple instances of a routing table to coexist within the edge router.
• B. Route distinguishers are used for label bindings.
• C. Route distinguishers make a unique VPNv4 address across the MPLS network.
• D. Route distinguishers define which prefixes are imported and exported on the edge router.

Answer: C

NEW QUESTION 9
What is a prerequisite for configuring BFD?

• A. Jumbo frame support must be configured on the router that is using BFD.
• B. All routers in the path between two BFD endpoints must have BFD enabled.
• C. Cisco Express Forwarding must be enabled on all participating BFD endpoints.
• D. To use BFD with BGP, the timers 3 9 command must first be configured in the BGP routing process.

Answer: C

NEW QUESTION 10
Refer to the exhibit.

Network operations cannot read or write any configuration on the device with this
configuration from the operations subnet. Which two configurations fix the issue? (Choose two.)

• A. Configure SNMP rw permission in addition to community ciscotest.
• B. Modify access list 1 and allow operations subnet in the access list.
• C. Modify access list 1 and allow SNMP in the access list.
• D. Configure SNMP rw permission in addition to version 1.
• E. Configure SNMP rw permission in addition to community ciscotest 1.

Answer: AB

NEW QUESTION 11
Which list defines the contents of an MPLS label?

• A. 20-bit label; 3-bit traffic class; 1-bit bottom stack; 8-bit TTL
• B. 32-bit label; 3-bit traffic class; 1-bit bottom stack; 8-bit TTL
• C. 20-bit label; 3-bit flow label; 1-bit bottom stack; 8-bit hop limit
• D. 32-bit label; 3-bit flow label; 1-bit bottom stack; 8-bit hop limit

Answer: A

NEW QUESTION 12

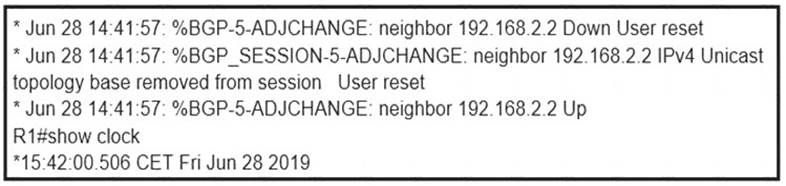

Refer to the exhibit.

An engineer is troubleshooting BGP on a device but discovers that the clock on the device
does not correspond to the time stamp of the log entries. Which action ensures consistency between the two times?

• A. Configure the service timestamps log uptime command in global configuration mode.
• B. Configure the logging clock synchronize command in global configuration mode.
• C. Configure the service timestamps log datetime localtime command in global configuration mode.
• D. Make sure that the clock on the device is synchronized with an NTP server.

Answer: D

NEW QUESTION 13

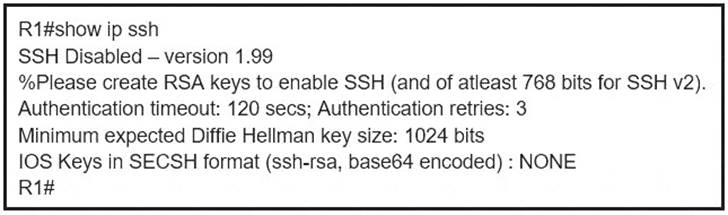

Refer to the exhibit.

An engineer is trying to connect to a device with SSH but cannot connect. The engineer connects by using the console and finds the displayed output when troubleshooting. Which command must be used in configuration mode to enable SSH on the device?

• A. no ip ssh disable
• B. ip ssh enable
• C. ip ssh version 2
• D. crypto key generate rsa

Answer: D

NEW QUESTION 14
Which command allows traffic to load-balance in an MPLS Layer 3 VPN configuration?

• A. multi-paths eibgp 2
• B. maximum-paths 2
• C. maximum-paths ibgp 2
• D. multi-paths 2

Answer: B

NEW QUESTION 15
Refer to the exhibit.

What is the result of applying this configuration?

• A. The router can form BGP neighborships with any other device.
• B. The router cannot form BGP neighborships with any other device.
• C. The router cannot form BGP neighborships with any device that is matched by the access list named “BGP”.
• D. The router can form BGP neighborships with any device that is matched by the access list named “BGP”.

Answer: D

NEW QUESTION 16
Which method changes the forwarding decision that a router makes without first changing the routing table or influencing the IP data plane?

• A. nonbroadcast multiaccess
• B. packet switching
• C. policy-based routing
• D. forwarding information base

Answer: C

NEW QUESTION 17
An engineer is trying to copy an IOS file from one router to another router by using TFTP. Which two actions are needed to allow the file to copy? (Choose two.)

• A. Copy the file to the destination router with the copy tftp: flash: command
• B. Enable the TFTP server on the source router with the tftp-server flash: <filename> command
• C. TFTP is not supported in recent IOS versions, so an alternative method must be used
• D. Configure a user on the source router with the username tftp password tftp command
• E. Configure the TFTP authentication on the source router with the tftp-server authentication local command

Answer: AB

NEW QUESTION 18

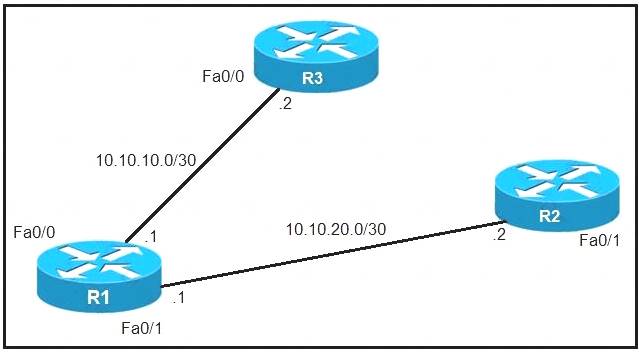

Refer to the exhibit.

An IP SLA was configured on router R1 that allows the default route to be modified in the event that Fa0/0 loses reachability with the router R3 Fa0/0 interface. The route has changed to flow through
router R2. Which debug command is used to troubleshoot this issue?

• A. debug ip flow
• B. debug ip sla error
• C. debug ip routing
• D. debug ip packet

Answer: C

NEW QUESTION 19

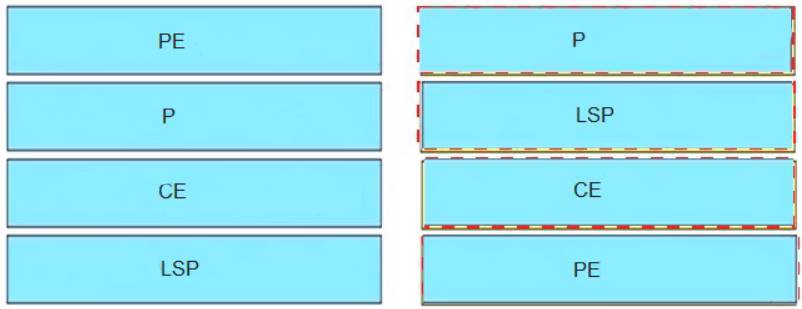

Drag and drop the MPLS terms from the left onto the correct definitions on the right.

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:

NEW QUESTION 20
Which configuration enabled the VRF that is labeled “Inet” on FastEthernet0/0?

• A. R1(config)# ip vrf InetR1(config-vrf)#ip vrf FastEthernet0/0
• B. R1(config)#ip vrf Inet FastEthernet0/0
• C. R1(config)# ip vrf InetR1(config-vrf)#interface FastEthernet0/0 R1(config-if)#ip vrf forwarding Inet
• D. R1(config)#router ospf 1 vrf InetR1(config-router)#ip vrf forwarding FastEthernet0/0

Answer: C

NEW QUESTION 21

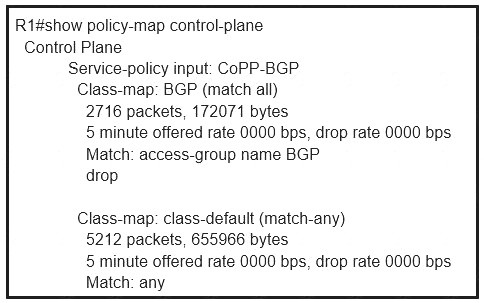

While troubleshooting connectivity issues to a router, these details are noticed:
Standard pings to all router interfaces, including loopbacks, are successful.
Data traffic is unaffected.
SNMP connectivity is intermittent.
SSH is either slow or disconnects frequently.
Which command must be configured first to troubleshoot this issue?

• A. show policy-map control-plane
• B. show policy-map
• C. show interface | inc drop
• D. show ip route

Answer: A

NEW QUESTION 22
Which statement about IPv6 ND inspection is true?

• A. It learns and secures bindings for stateless autoconfiguration addresses in Layer 3 neighbor tables.
• B. It learns and secures bindings for stateless autoconfiguration addresses in Layer 2 neighbor tables.
• C. It learns and secures bindings for stateful autoconfiguration addresses in Layer 3 neighbor tables.
• D. It learns and secures bindings for stateful autoconfiguration addresses in Layer 2 neighbor tables.

Answer: B

NEW QUESTION 23
Refer to the exhibit.

Which configuration denies Telnet traffic to router 2 from 198A:0:200C::1/64?

• A. Option A
• B. Option B
• C. Option C
• D. Option D

Answer: A
