NEW QUESTION 1
Which two IPv4 addresses can be assigned to a host computer? (Choose two.)

• A. 255.255.255.255
• B. 10.1.1.20
• C. 0.0.0.0
• D. 192.168.10.15
• E. 292.10.3.4

Answer: BD

NEW QUESTION 2
Which command initiates the copying of a Cisco IOS image to a Cisco device?

• A. copy tftp nvram
• B. copy tftp flash
• C. copy flash tftp
• D. copy xmodem flash

Answer: B

NEW QUESTION 3
Which Xmodem option is used to enhance error checking of an image that is copied to flash memory?

• A. -e
• B. -r
• C. -c
• D. -x

Answer: C

NEW QUESTION 4
What is the correct IPv6 address notation?

• A. 2001:0DB8::/128
• B. 2001:0DB8:0::
• C. 2001:0DB8::1:1:1:1:1
• D. 2001:0DB8:130F:0000:0000:7000:0000:140B

Answer: D

NEW QUESTION 5
Which device is a DTE device?

• A. CSU/DSU
• B. router
• C. cable modem
• D. DSL modem

Answer: B

NEW QUESTION 6
How many pairs of copper wire does a UTP cable have?

• A. 2
• B. 3
• C. 4
• D. 5

Answer: C

NEW QUESTION 7
What is the Windows-based program that executes the ping command to test network connectivity?

• A. cmd
• B. Find
• C. Start
• D. ipconfig

Answer: A

NEW QUESTION 8
Which two pieces of information about a neighboring device are displayed when you use the CLI command show cdp neighbor? (Choose two.)

• A. platform
• B. uptime
• C. device ID
• D. Cisco IOS Software version
• E. IP address

Answer: AC

NEW QUESTION 9
The pins on an RJ-45 cable plug are numbered from 1 through 8. When the metal pins of the plug are facing toward you, pin 1 is the leftmost pin. Which two sets of pins are looped on an RJ-45 56K loopback plug? (Choose two.)

• A. pins 2 and 7 B.pins 2 and 8
• B. pins 2 and 5 D.pins 1 and 7
• C. pins 1 and 4

Answer: CE

NEW QUESTION 10
Which set of steps best describes how to assign a static IP address to the Ethernet port on a computer?

• A. From the Network and Sharing Center, click Internet Protocol (TCP/IP), and follow the New Connection Wizard instructions.
• B. From the Network and Sharing Center, click Change adapter, then double-click a local area connectio
• C. Select Internet Protocol (TCP/IP) > Properties > Use the Following Address, and then configure the IP information.
• D. Click Star
• E. Enter cmd and click O
• F. Enter the IP address XXX.XXX.XXX.XXX.
• G. From the Network and Sharing Center, double-click Local Area Connectio
• H. Select Properties > iPass Protocol (IEEE 802.1x) > Properties > Static IP.

Answer: B

NEW QUESTION 11

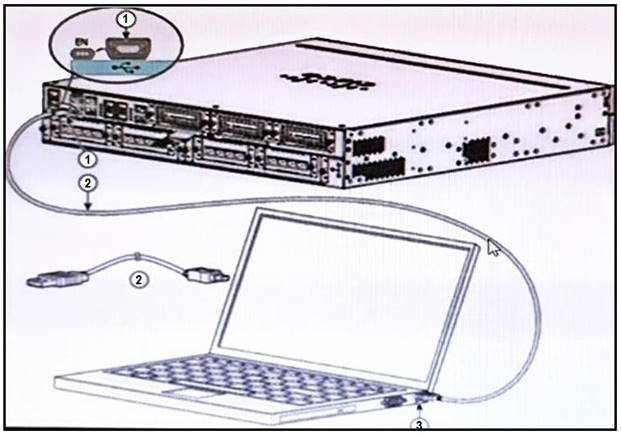

Refer to the exhibit. Which two statements about the hardware components are true? (Choose two.)

• A. 2 is an RJ-45 to USB Type A console cable.
• B. 3 is a USB Type A port.
• C. 3 is a USB 5-pin mini USB Type B port.
• D. 1 is a USB Type A port.
• E. 2 is a USB 5-pin mini USB Type B to USB Type A console cable.

Answer: BE

NEW QUESTION 12
Which command displays a list of file systems that are available on Cisco devices?

• A. show memory
• B. show directory
• C. show file system
• D. show version

Answer: C

NEW QUESTION 13
The colored wires at one end of a cable are in reverse sequence to the colored wires at the other end of the cable. Which cable does this configuration describe?

• A. rolled
• B. crossover
• C. coaxial
• D. straight-through

Answer: B

NEW QUESTION 14
Which type of physical connector does a Gigabit Ethernet port typically use?

• A. RJ-9
• B. RJ-45
• C. DB-25
• D. RJ-11

Answer: B

NEW QUESTION 15
Which two statements about Telnet and SSH are true? (Choose two.)

• A. SSH is a protocol that provides a secure remote access connection to network devices.
• B. SSH uses the well-known TCP port 23 for its communication.
• C. A Telnet network management connection is dropped when a router reboots.
• D. Telnet is a protocol that provides a secure remote access connection to network devices.
• E. Telnet is preferred over SSH for security reasons.

Answer: AC

NEW QUESTION 16
Which layer of the OSI model defines how data is formatted for transmission and how access to the physical media is controlled?

• A. presentation
• B. data link
• C. network
• D. transport

Answer: B

NEW QUESTION 17
ESD is the sudden and momentary electric current that flows between two objects at different electrical potentials, caused by direct contact or induced by an electrostatic field. Which three tools are used to avoid ESD? (Choose three.)

• A. negative static bag
• B. antistatic mat
• C. ESD wrist strap
• D. negative static mat
• E. antistatic bag
• F. latex gloves

Answer: BCE

NEW QUESTION 18
Which router port is used for dial-in access to the router for CLI management purposes and does not usually pass normal network traffic?

• A. Fast Ethernet
• B. channelized serial
• C. AUX
• D. Gigabit Ethernet

Answer: C

NEW QUESTION 19
Which two commands are valid for copying a saved configuration to RAM? (Choose two.)

• A. copy startup-config running-config
• B. copy running-config startup-config
• C. copy tftp running-config
• D. copy running-config tftp
• E. copy tftp startup-config

Answer: AC

NEW QUESTION 20
Which method is the fastest way to recover a software version that supports a USB flash port on a Cisco device?

• A. tftp command
• B. xmodem transfer command
• C. copy command with USB memory
• D. copy tftp flash: command

Answer: C

NEW QUESTION 21
Which command sends an echo request packet to the target host and then waits for an echo response message?

• A. echo
• B. access
• C. ping
• D. connect

Answer: C
